Accsoon CineView HE Dual-Band Wireless Video Transmission System
The Accsoon CineView HE is a high-performance wireless video transmitter and receiver kit that sends 1080p60 HDMI video and audio over long distances using dual-band 2.4 GHz + 5 GHz technology. It supports multi-device monitoring and includes a USB-C UVC output on the receiver for direct live streaming to computers and mobile devices.
Key Features:
• Dual-band 2.4 GHz + 5 GHz wireless transmission for robust signal stability and less interference
• Supports 1080p60 full HD video and embedded audio transmission
• Long transmission range up to ~1200 ft / 350 m (line-of-sight)
• Ultra-low latency — less than 0.06 s
• Transmits to up to 4 receivers/devices simultaneously (RX + mobile)

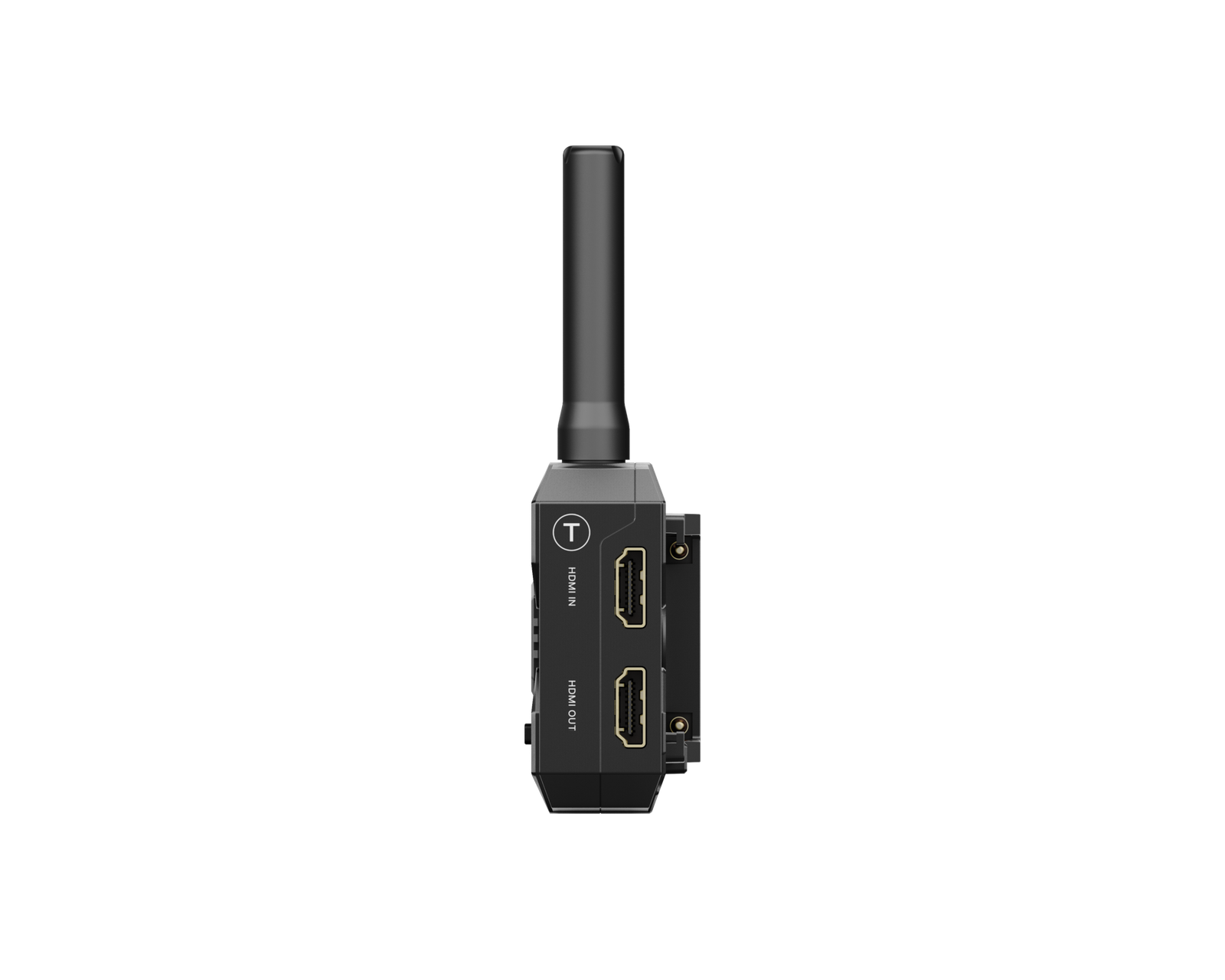

• HDMI In & HDMI Loop-Out on transmitter (lossless output)
• USB-C UVC output on receiver for direct computer streaming (no capture card needed)
• Auto channel selection for optimal performance
• Mobile monitoring via companion app on Android/iOS ($)
• Flexible power options: NP-F battery, DC, USB-C
Compare
| Accsoon CineView HE | ||
| SKU | Model | UPC |
| 1 TX + 1 RX | WIT04-HE | 664918771744 |
| 1 TX | WIT04-HE-TX | 664918771768 |
| 1 RX | WIT04-HE-RX | 664918771775 |
| Specification | ||
| Transmitter | Receiver | |
| Product Image | ||
| Video Input | HDMI | |
| Video Output | HDMI | |
| HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps | |
| HDMI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps | 1080p 24/25/30/50/60fps |
| DC Port | 5.5mmx2.1mm, center positive | |
| DC Voltage | 7.4~16.8V | |
| Audio | 44.1KHz/48KHz 16bit/24bit PCM | |
| Latency | ＜0.06s (Camera latency not included) |
|
| OLED Display | 1.3 inch | 1.3 inch |
| Transmission Power | 17~20dBm | |
| Transmission Range | 1200ft (No obstacles, no interference) |
|
| Power Consumption | 4.5 Watt （Typical） |
4.2 Watt (Typical) |
| Operating Environment Temperature |
-10~40℃ | |
| Dimensions (Antennas Not Included) |
105mmx66mmx32mm | |
| Weight (Antennas Not Included) |
200g | 200g |
