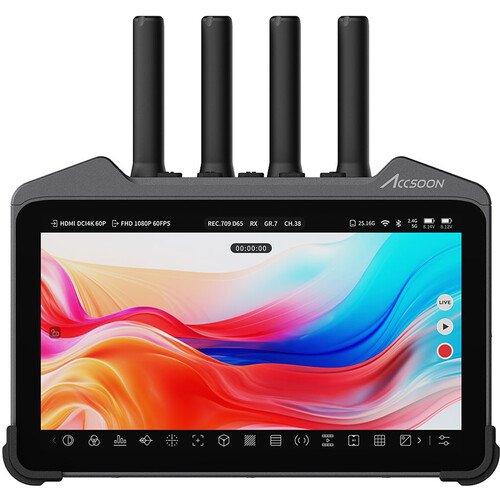

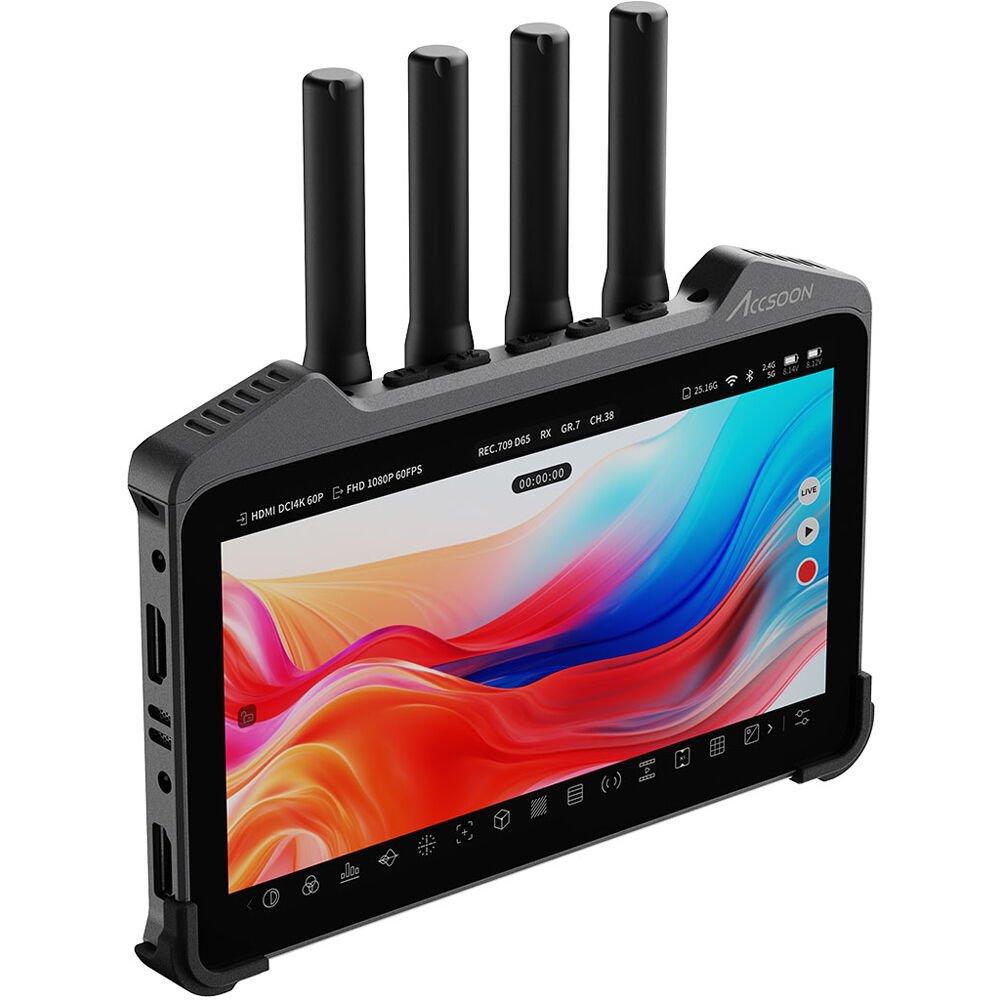

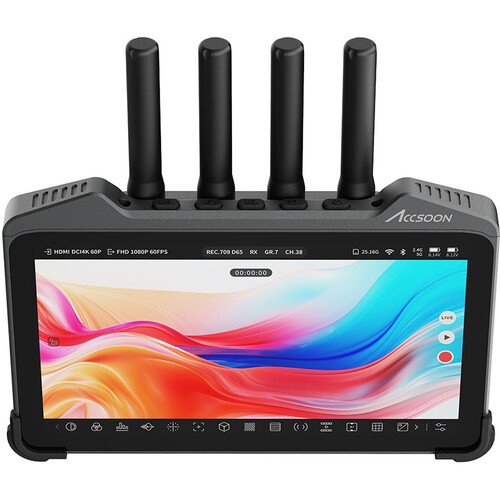

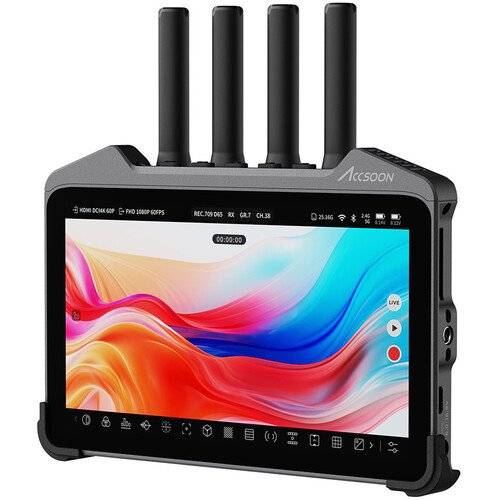

Add pro cinema monitoring tools to your camera with the CineView M7H 7″ Smart HDMI Monitor with Wi-Fi Streaming from Accsoon. This bright, 7″ on-camera multi-touch display offers 1920 x 1080 resolution, wireless streaming and receiver functions, 1000 cd/m² brightness, numerous imaging tools, and the ability to input and output up to DCI 4K60 video via HDMI.
Wireless Transmitter/Receiver
The M7H features an integrated dual-band wireless receiver that can receive 1920 x 1080p video from up to 1200′ away. When using the latest firmware update and a separately available receiver or the Accsoon SEE app, you can enable transmitter mode that can send your video to other destinations. The monitor also supports Wi-Fi and Bluetooth file transfer, cloud uploading, and live streaming to the Internet.
Powerful Touchscreen Display
This edge-lit LED-backlit LCD screen features a bright, multi-touch interface with 1920 x 1080 resolution that accurately monitors cinema-grade footage. It features a wide 176° viewing angle, and it is fully calibrated to 100% Rec.709 from the factory for accurate, true-to-life colors.
Versatile Input/Output

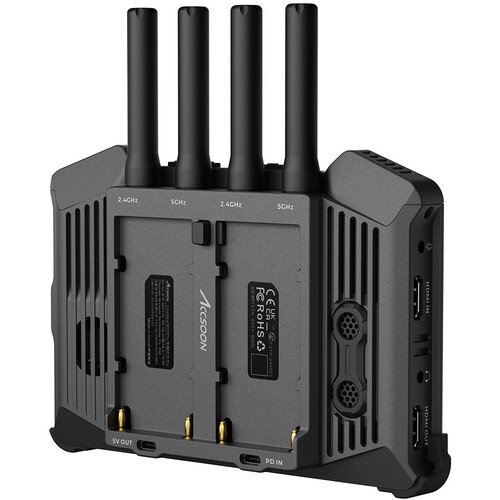

The monitor provides HDMI 2.0 input and output support up to DCI 4K60 video. There is also a 3.5mm microphone jack to embed audio into video recording/output, and a 3.5mm headphone jack is provided with a source selector to monitor either embedded or mic input audio.
Multiple Imaging Tools
The integrated SmartOS features multiple tools to enhance your monitoring experience, including 3D LUT support, color grading, color management, waveforms, histograms, gamma settings, gain control, zebra, vectorscope, device status such as temperature and fan speed, and more.
Recording and Playback
The monitor features built-in recording via the SD card slot or the USB port via a flash drive or external SSD storage. You can record up to 4K60 from the HDMI input or 1080p60 via the SDI input, and it supports H.264/H.265 compression and CBR/VBR control. Recordings also allow you to save files with 3D LUTs applied. The SmartOS features a file management interface for playback and management of all your recording files.
Power Options

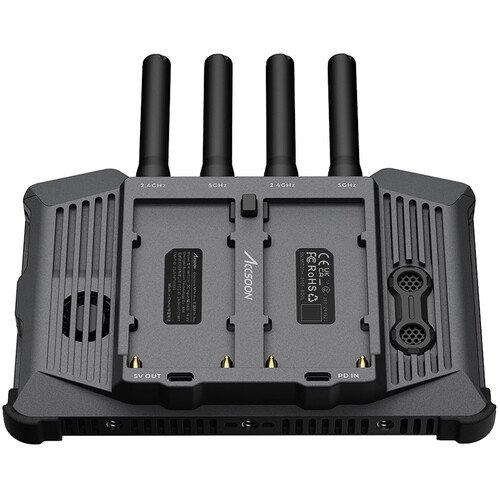

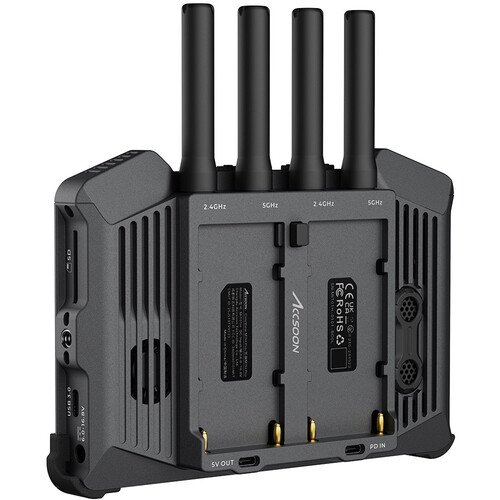

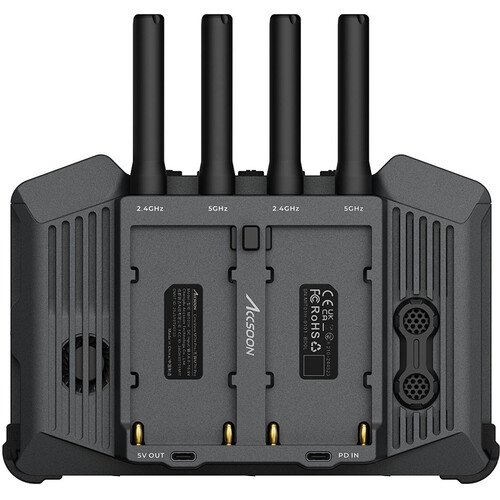

You can power the monitor using the dual L-series/NP-F slots on the back, or you can utilize the 2.1mm barrel 16.8V input or the USB-C PD input with a separately available 9V, 3A power supply. The monitor also allows you to pass power through to a camera or external device using the 5V USB-C output.
Additional Details
- High-transparency display with antireflective DXC coating
- 1000 cd/m² brightness for easy viewing, even in outdoor environments
- High 1000:1 contrast ratio
- Customizable physical function buttons
- Optional cage with a sun hood is available separately
- Support for cinema color spaces, including 8/10-bit RGB and YUV 422/444

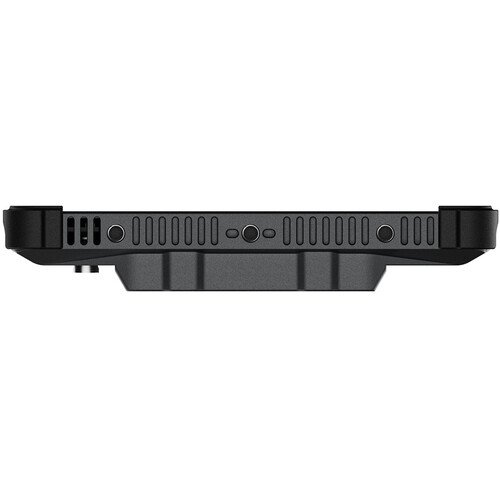

- 1/4″-20 mounting options on multiple sides
- Aircraft-grade aluminum chassis
- Passive and fan cooling
