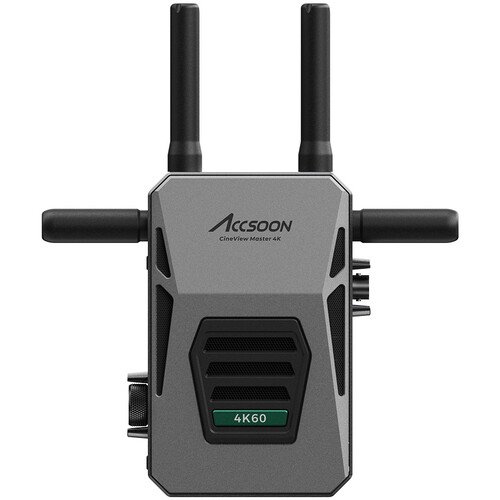

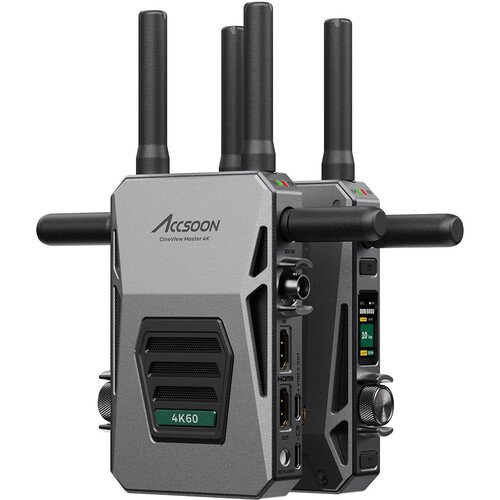

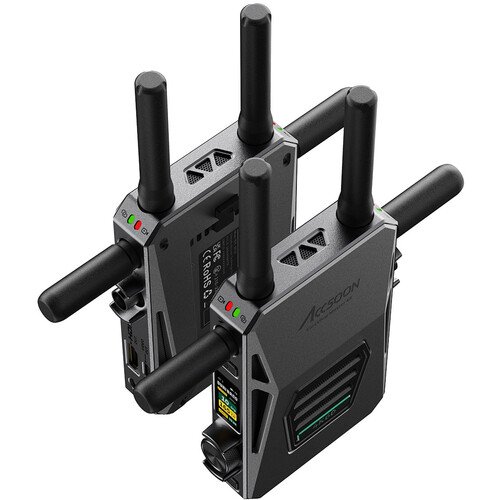

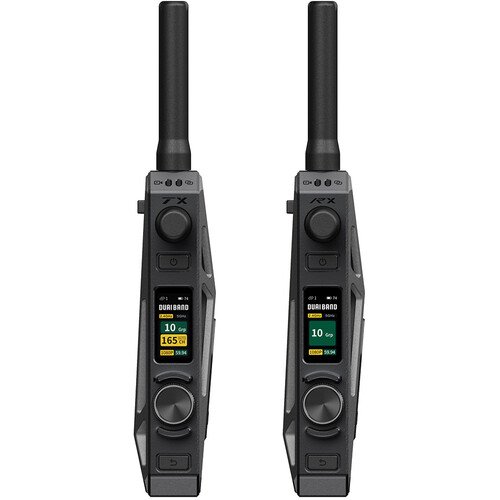

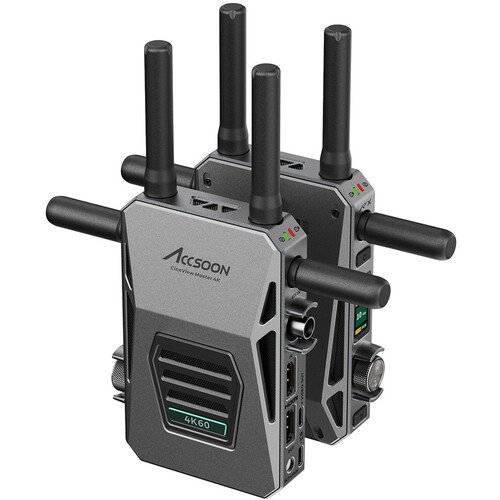

Wirelessly monitor up to DCI 4K60 video from long distances with the CineView Master 4K Lite Wireless Transmission System from Accsoon. The transmitter provides HDMI and 3G-SDI inputs and an HDMI loop output, and the receiver offers 3G-SDI and HDMI outputs. It features extremely low 35 ms latency with line-of-sight transmission up to 1200′ to the receiver. You can output video via USB-C from the transmitter or receiver, transmit from the camera to the cloud via Frame.io, and control the camera.
DCI 4K Video Transmission
The CineView Master 4K Lite supports up to UHD/DCI 4K60 video transmission via HDMI, and up to 1080p60 video via 3G-SDI for high-resolution production capability.
The system utilizes dual-band 2.4/5 GHz RTMS 4.0 transmission to ensure solid connections and fast data rates up to 32 Mb/s.
Long Range and Low Latency
The CineView Master 4K Lite achieves a long line-of-sight range of up to 1200′ and an ultralow latency of 35 ms (at 1080p). It uses the H.265 codec, which provides high-quality images with low latency over long distances, and also supports H.264 for wide compatibility.
Multiple Interface Choices

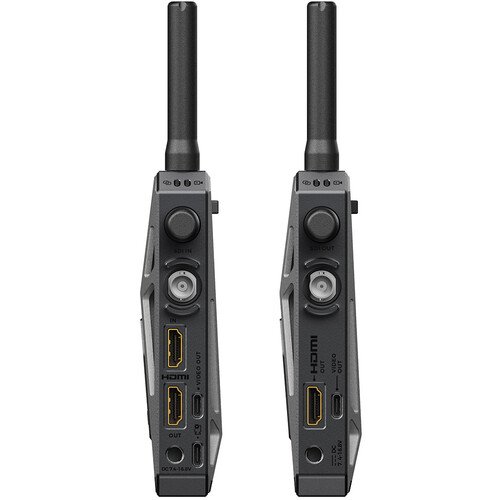

The CineView Master 4K Lite transmitter supports HDMI or SDI input and HDMI loop output, and the receiver features both HDMI and 3G-SDI output for expanded connectivity and compatibility.
Both the transmitter and receiver feature USB-C outputs for monitoring video on your mobile device or a local monitor.
Camera to Cloud
The CineView Master 4K Lite system allows you to easily share your video to Frame.io via the C2C integration, enabling real-time, automatic uploads from just about any camera to the cloud.
Camera Control
The transmitter supports camera control via a USB-C connector to connect your mobile device. Options include ISO, aperture, white balance, shutter speed, and record trigger for instant control of your camera.
You can also set up real-time record synchronization on a multi-camera setup.
Power and Connectivity Options

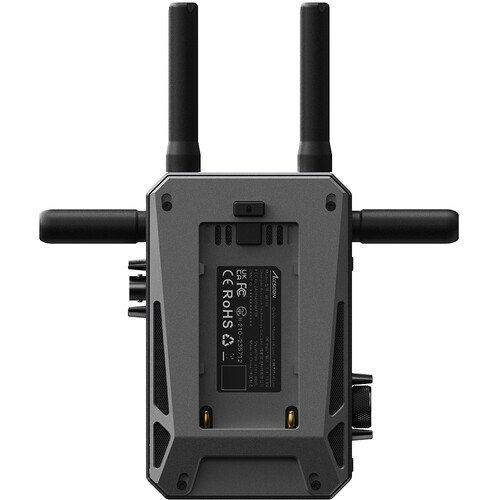

The CineView Master 4K Lite supports DC power input via a separately available power adapter, and the units can also be powered via the rear L-series battery plate. You can also utilize a separately available V-mount battery plate for additional compatibility.
The USB-C outputs can also charge your device while connected for monitoring.
App Monitoring
The Accsoon SEE app for Android and iOS allows you to monitor your transmission on a smartphone or tablet. It allows you to transmit to apps and receivers in the following wired or wireless configurations:
- Wired: Transmitter to one receiver + one USB-C device
- Wireless: Transmitter to up to four devices
- Wireless/Wired: Transmitter to one wired and up to four wireless devices
