Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom from AVMATRIX. The camera offers precision control and multiple output ports, and is designed for broadcast, security, and teleconferencing needs. It also supports NDI/IP, UVC, VISCA, Pelco-D, and Pelco-P control protocols. This camera supports video output via NDI/IP, USB, HDMI, and 3G-SDI and has a LAN port for IP streaming via RTMP/S, SRT, RTSP, or ONVIF.
1080p Capture
The EAGLE features a high-resolution 2.07MP 1/2.8″ CMOS sensor that can capture up to 1080p60 video.
NDI HX3 Support
The camera supports the NDI 6.0 standard by streaming via NDI HX3, a high-quality, low-latency broadcast-grade stream to support high-resolution 4K streams over a broadcast NDI network.
AI Auto-Tracking and Autoframing
The EAGLE features intelligent AI tracking with four selectable modes that can be utilized to follow subjects around a stage or room during live events, lectures, or conferences from up to 59′ away:
- Real-time
- Stage tracking
- Area tracking
- Intelligent view
The AI technology also supports auto-framing to reframe and reposition your subject in the frame when you’re in real-time mode, and in stage tracking mode you can adjust the size of the frame.
Optical Zoom Lens
The camera features a 12x optical zoom lens that maintains a crisp image throughout the zoom range. It also features a wide horizontal field of view and an additional 16x digital zoom to get even closer to your subjects with little image quality loss.
Versatile Interfaces

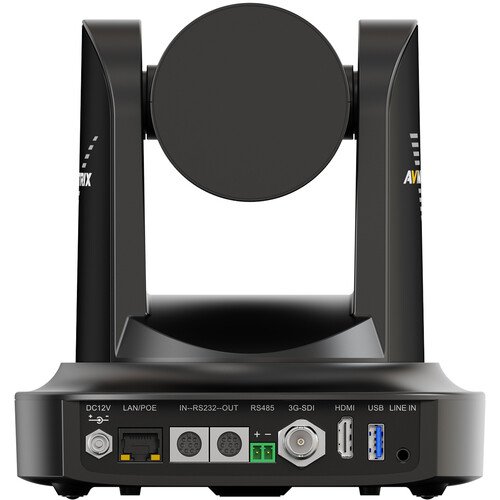

Output your video in multiple ways using the HDMI, 3G-SDI, USB-A 3.0, and LAN streaming ports. All of the ports can output video up to 1080p60, and you can control the camera simultaneously via UVC, serial, or IP.
FreeD Support for AR/VR
Add green screen shots to your productions using FreeD protocols, which are supported by the camera without additional sensors. This enables easy integration into virtual and augmented reality productions.
Control Protocols
In addition to UVC control over the USB port, the camera can be controlled via NDI, VISCA-over-IP, UDP, and ONVIF protocols via the LAN port, or it can be controlled via RS-485 or RS-232 serial using VISCA, Pelco-P, or Pelco-D protocols.
Presets
The camera supports saving up to 255 presets via optional IP/serial controllers, and it can save up to 10 presets on the included IR remote. The preset freeze function allows you to “freeze” actions for free switching between preset configurations.
Other Notable Details
- Manual or autofocus
- ±175° panning range
- -30/+90° tilting range
- NDI HX3, ONVIF, RTSP, RTMP/S, SRT streaming protocols
- H.265/H.264/MJPEG compression format support
- 3.5mm line audio input
- 100 Mb/s Ethernet
- Powered via included power supply or via PoE+
