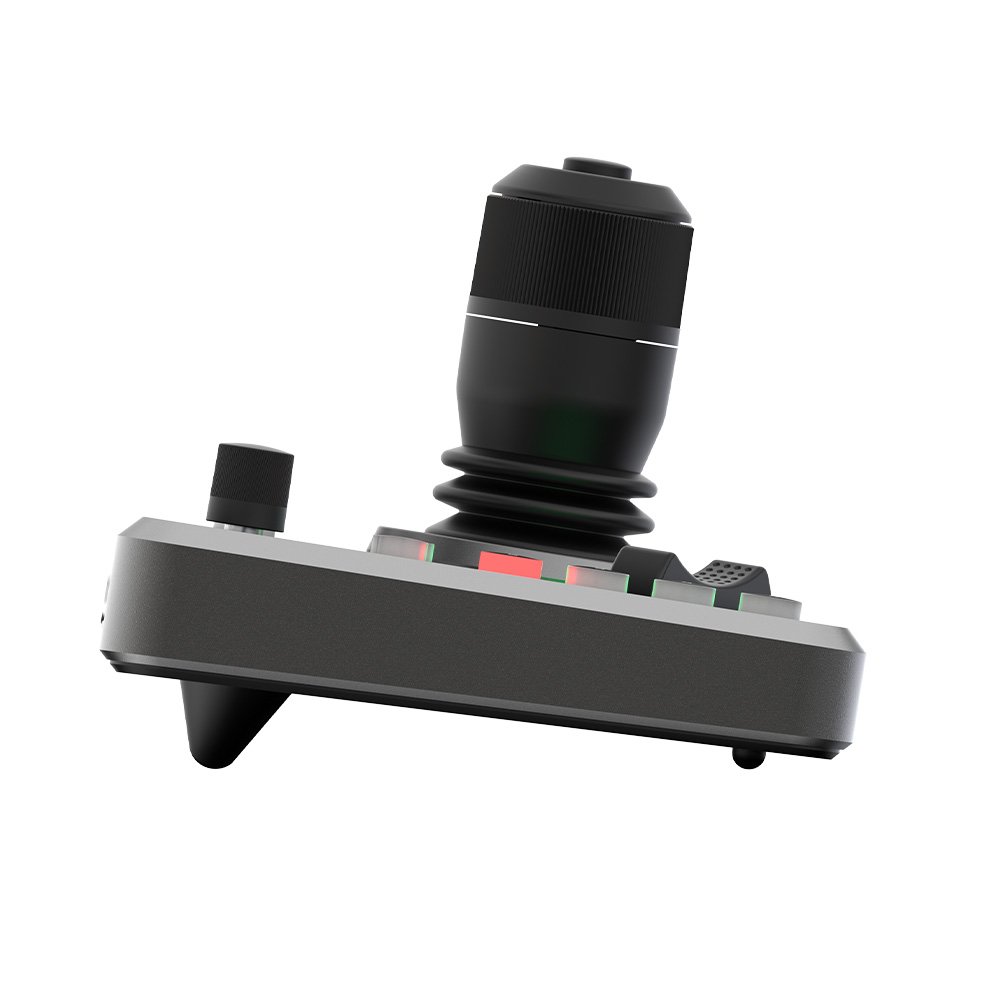

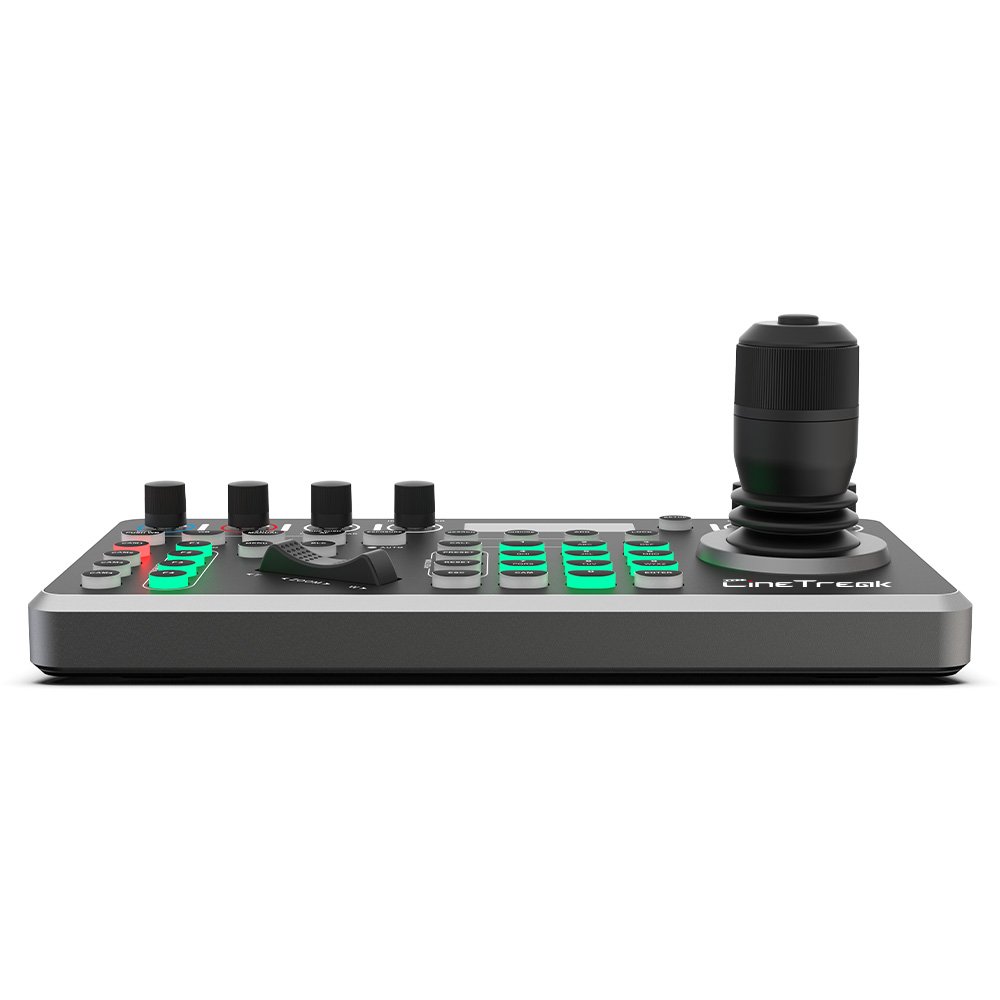

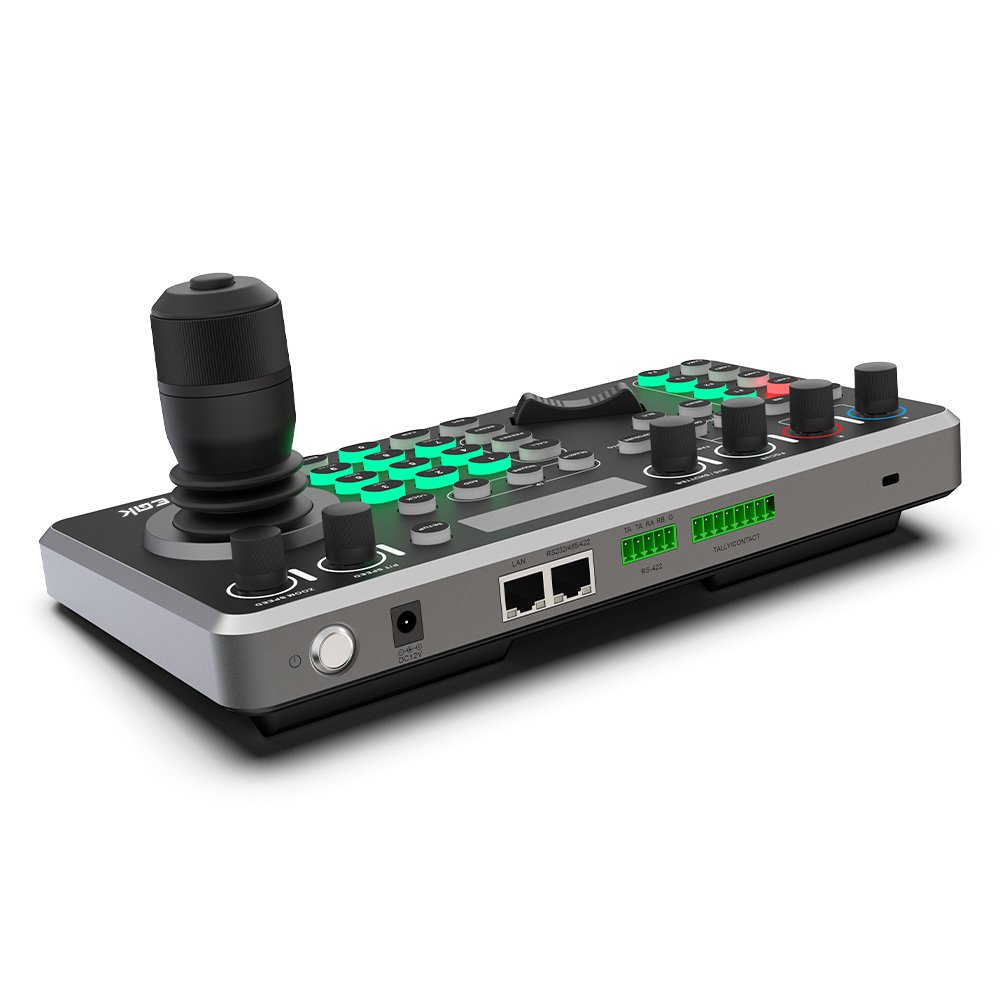

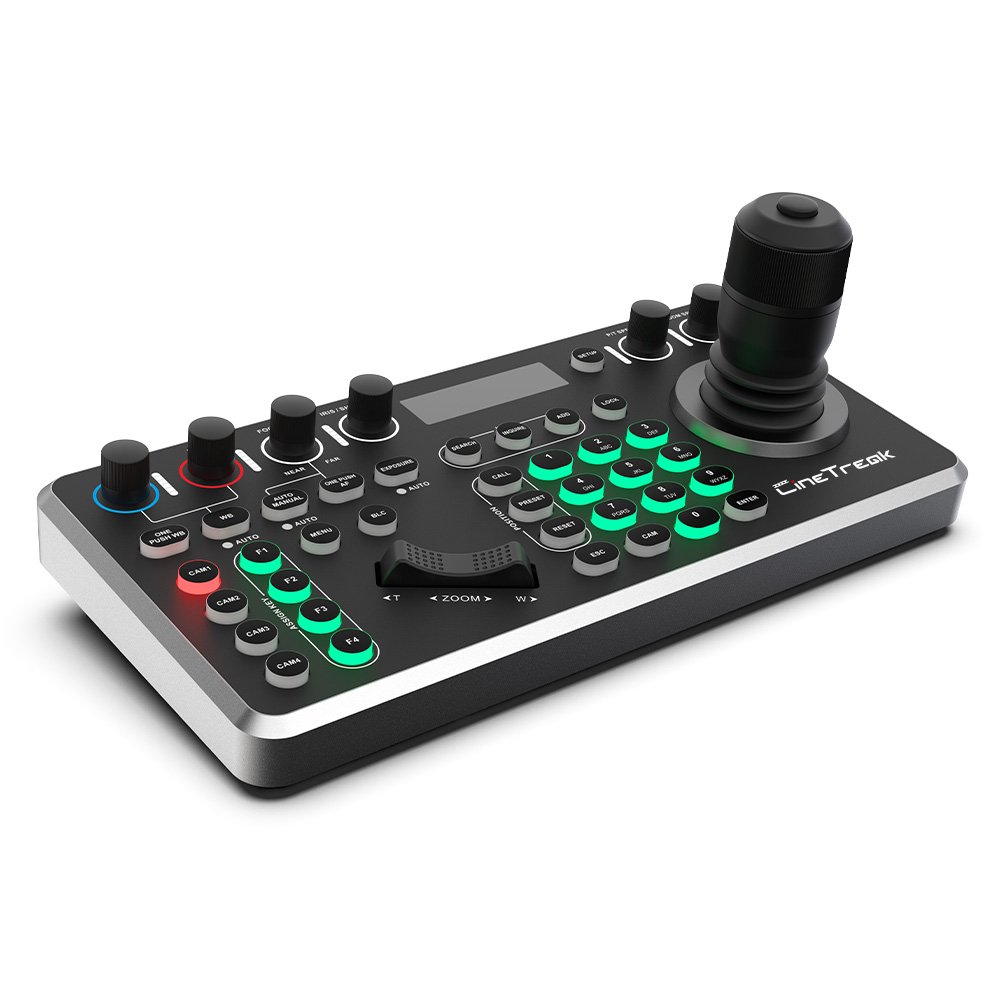

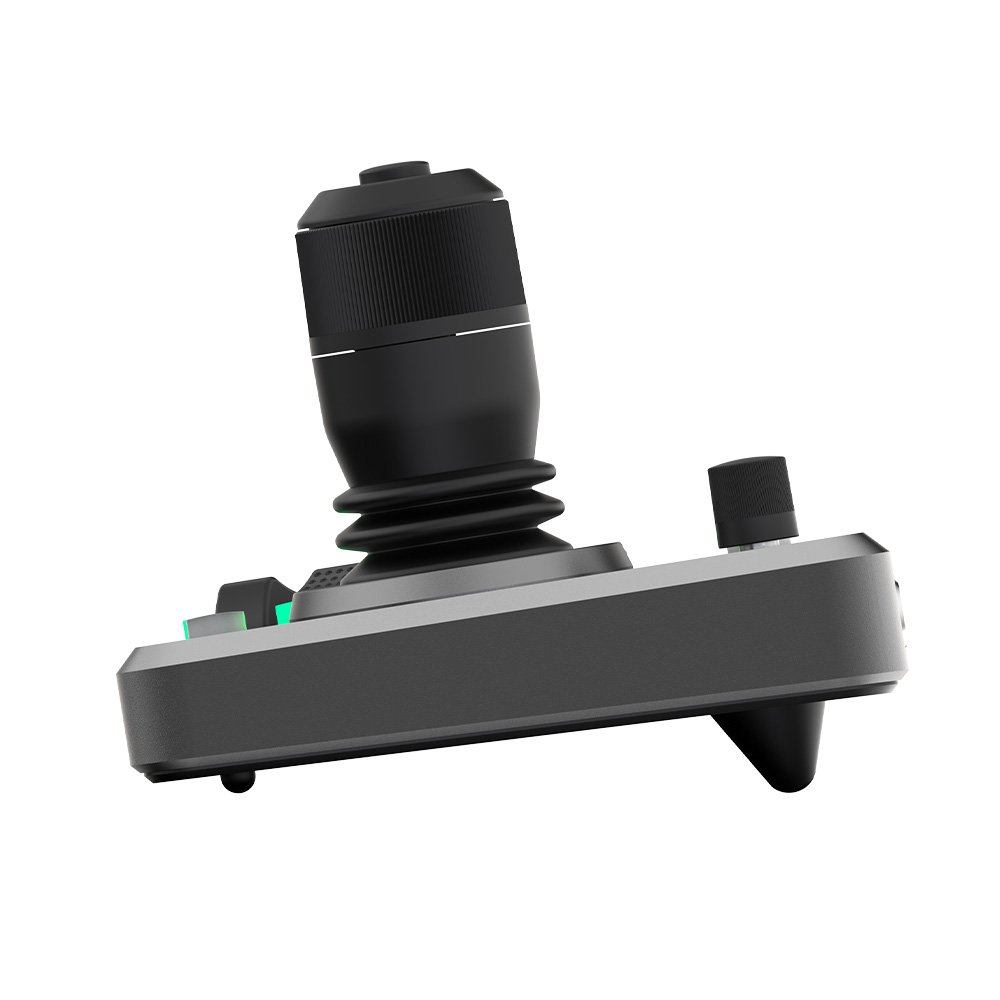

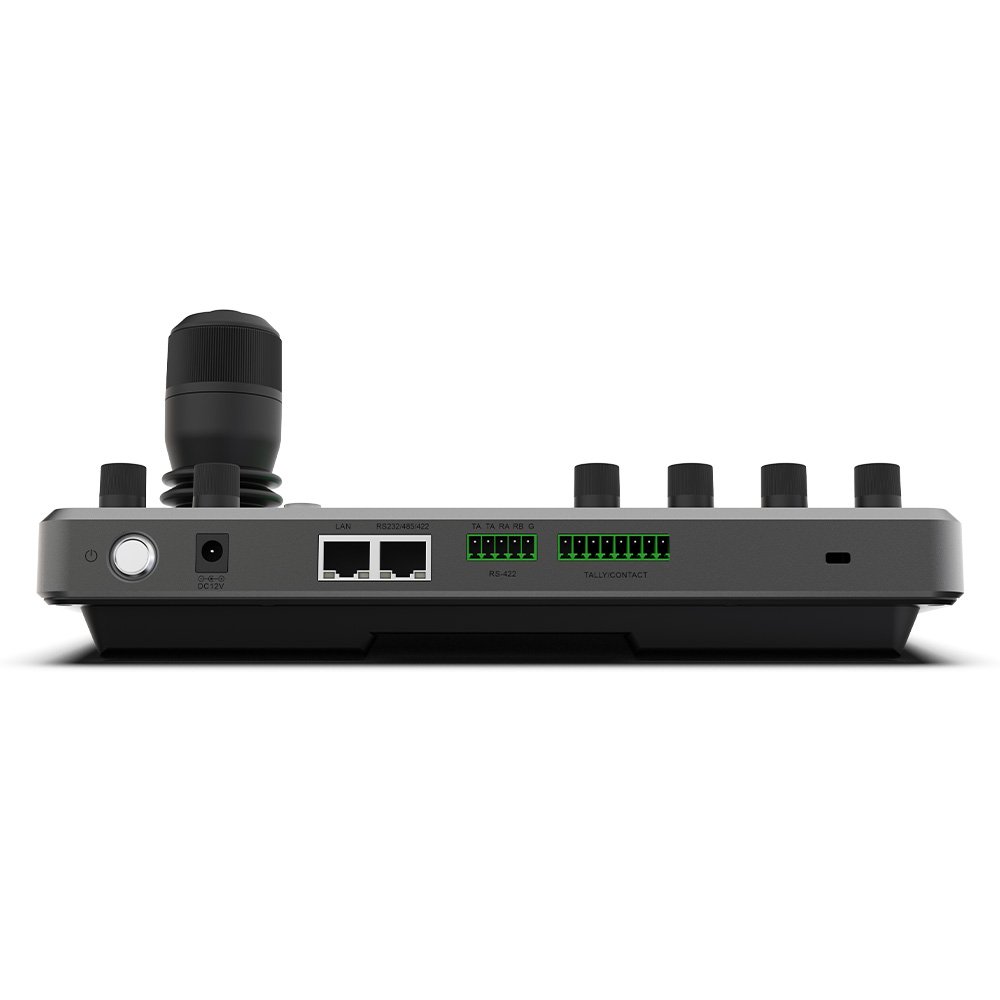

CineTreak CT-CR01 Multifunctional NDI PTZ Remote Controller
The CineTreak CT-CR02 is a professional PTZ camera controller featuring NDI|HX live preview, precision joystick control, and multi-protocol compatibility, designed for broadcast studios, live streaming, conferences, houses of worship, and educational production.
Key Features
• Built-in NDI|HX & RTSP live preview on LCD screen
• HDMI output up to 4K@30 for external monitoring
• Precision 4D joystick for Pan / Tilt / Zoom / Focus
• Rotary knobs for Iris, Shutter, Gain, White Balance, Focus
• Supports NDI, VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF
• RS-232 / RS-422 / RS-485 and IP control
• PoE+ powered with DC backup input
• Up to 255 camera presets with fast recall
• Tally input & output support
• Multi-camera management (up to 1000 IP cameras)
• Programmable function keys and backlit buttons
Compare
The CineTreak CT-CR02 is a high-end PTZ camera control console engineered for modern IP and SDI/HDMI broadcast environments. It integrates a high-precision 4D joystick, multi-function rotary knobs, and a built-in LCD preview screen supporting NDI|HX and RTSP streams, giving operators full visual feedback and accurate camera control in real time.
With support for major protocols including NDI, VISCA, Pelco-D/P, ONVIF, and VISCA over IP, the CT-CR02 can manage large multi-camera systems from a single interface. HDMI output up to 4K allows connection to external monitors, while PoE+ power simplifies installation and reduces cable clutter.
Ideal for television studios, live events, churches, corporate AV, and education, the CT-CR02 delivers smooth pan-tilt-zoom operation, fast preset recall, tally indication, and deep camera parameter control, making it a complete professional PTZ control solution.
| Parameter | Details |
|---|---|
| Model | CT-CR01 |
| Product Type | NDI PTZ Camera Remote Controller |
| Preview | Built-in LCD with NDI |
| HDMI Output | Up to 3840×2160 @ 30Hz |
| Control Protocols | NDI, VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF |
| Network Interface | RJ45 Ethernet (PoE+) |
| Serial Ports | RS-232, RS-422, RS-485 |
| Joystick | 4D PTZ Joystick |
| Control Parameters | Pan, Tilt, Zoom, Focus, Iris, Shutter, Gain, WB |
| Presets | Up to 255 |
| Tally | Input & Output Supported |
| Power | PoE+ (802.3af) / DC 12V |
| Camera Support | Up to 1000 IP cameras |
| Buttons | Backlit silicone keys, function shortcuts |
| Firmware | Upgradeable via network |
| Installation | Desktop Console |
| Application | Broadcast, Studio, Church, Conference, Education |
