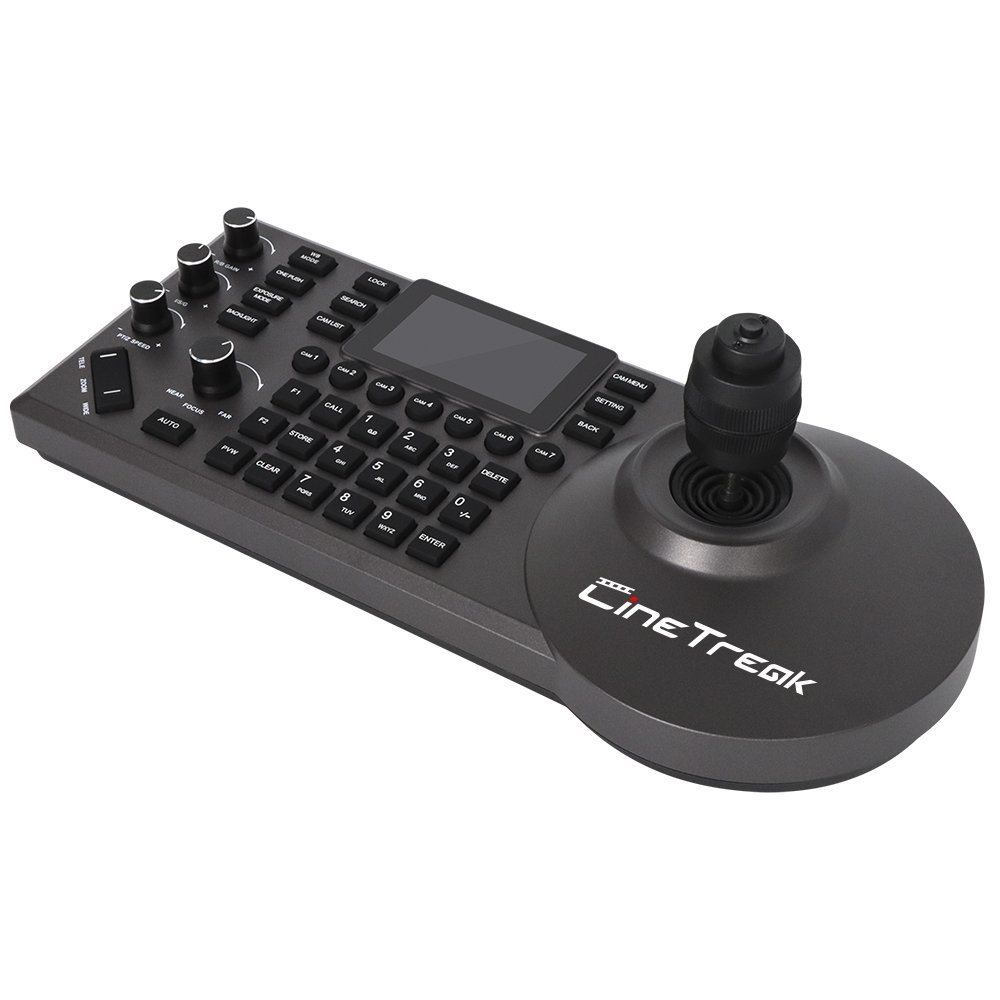

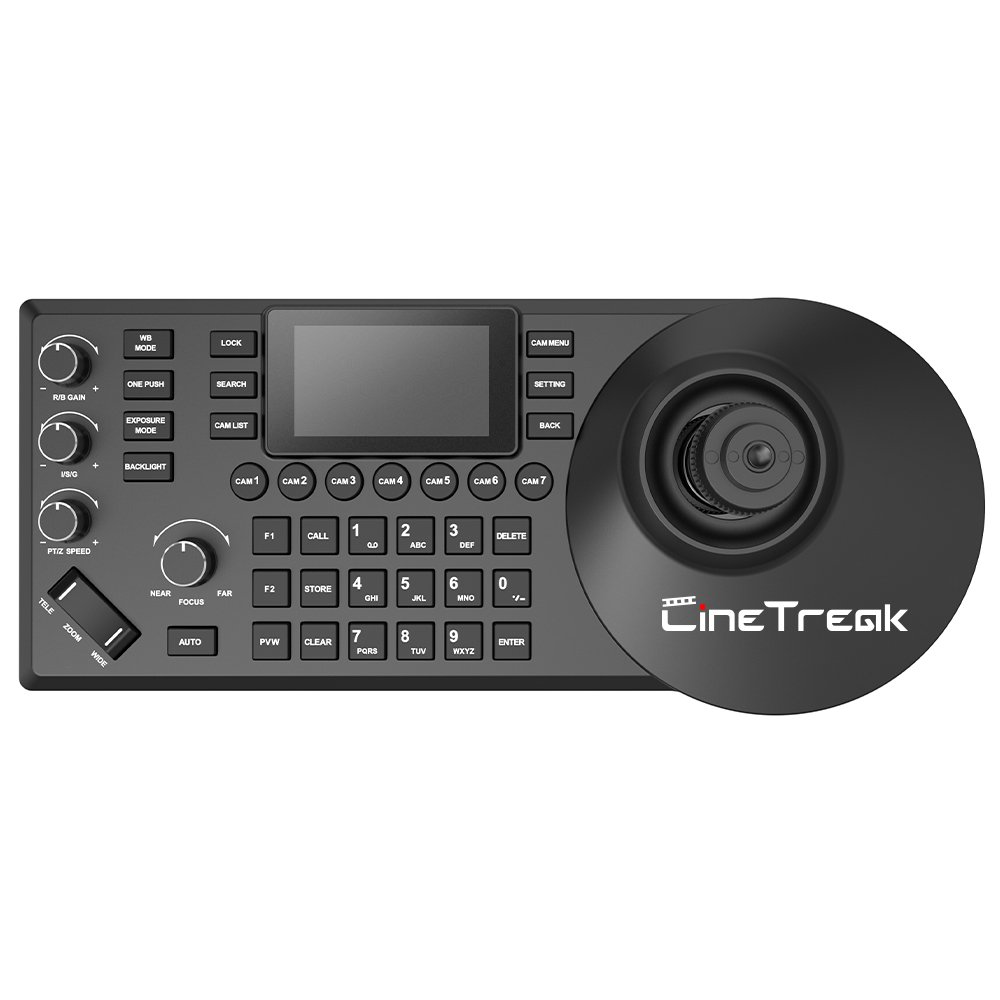

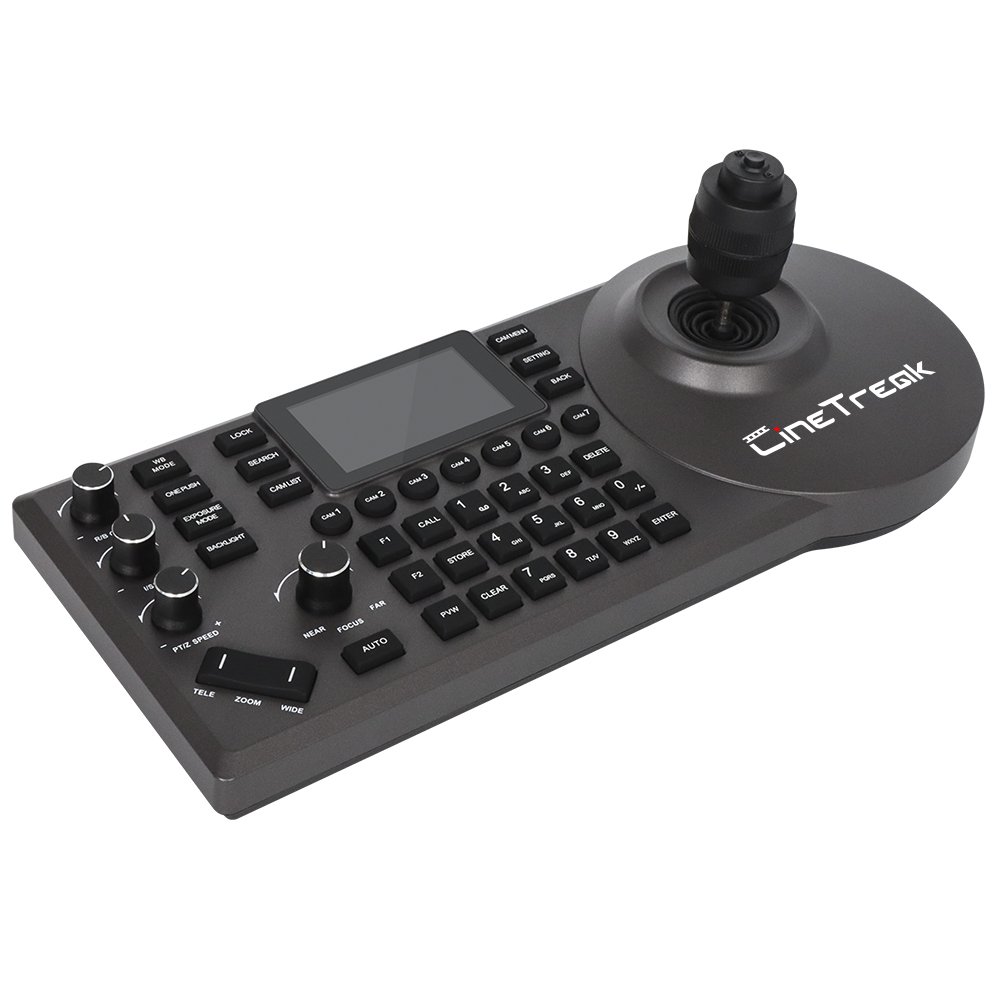

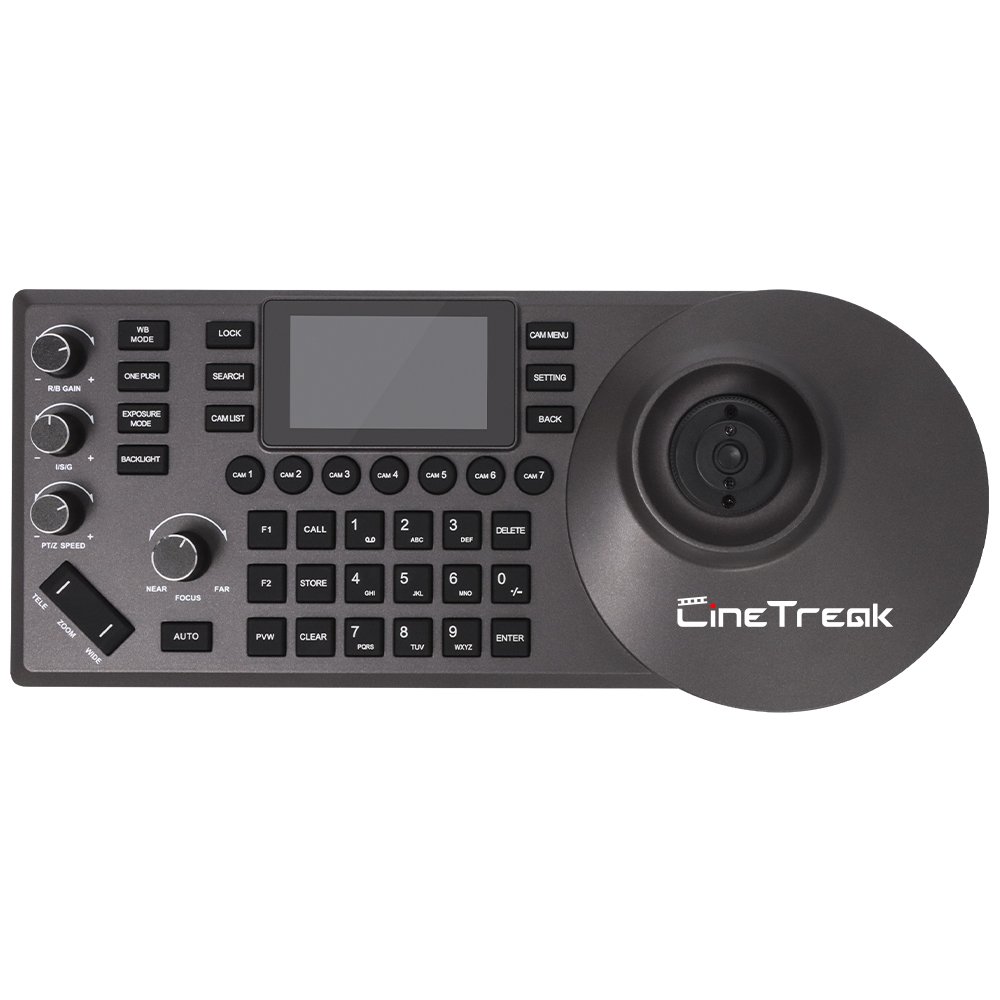

CineTreak CT-CR02 Multifunctional NDI PTZ Remote Controller with NDI HX Preview and Joystick Control
A professional NDI PTZ remote controller featuring joystick control, live preview via NDI | HX, 4K30 HDMI output, multi-protocol camera support, and an intuitive LCD interface — built for broadcast, live events, and studio control rooms.
Key Features

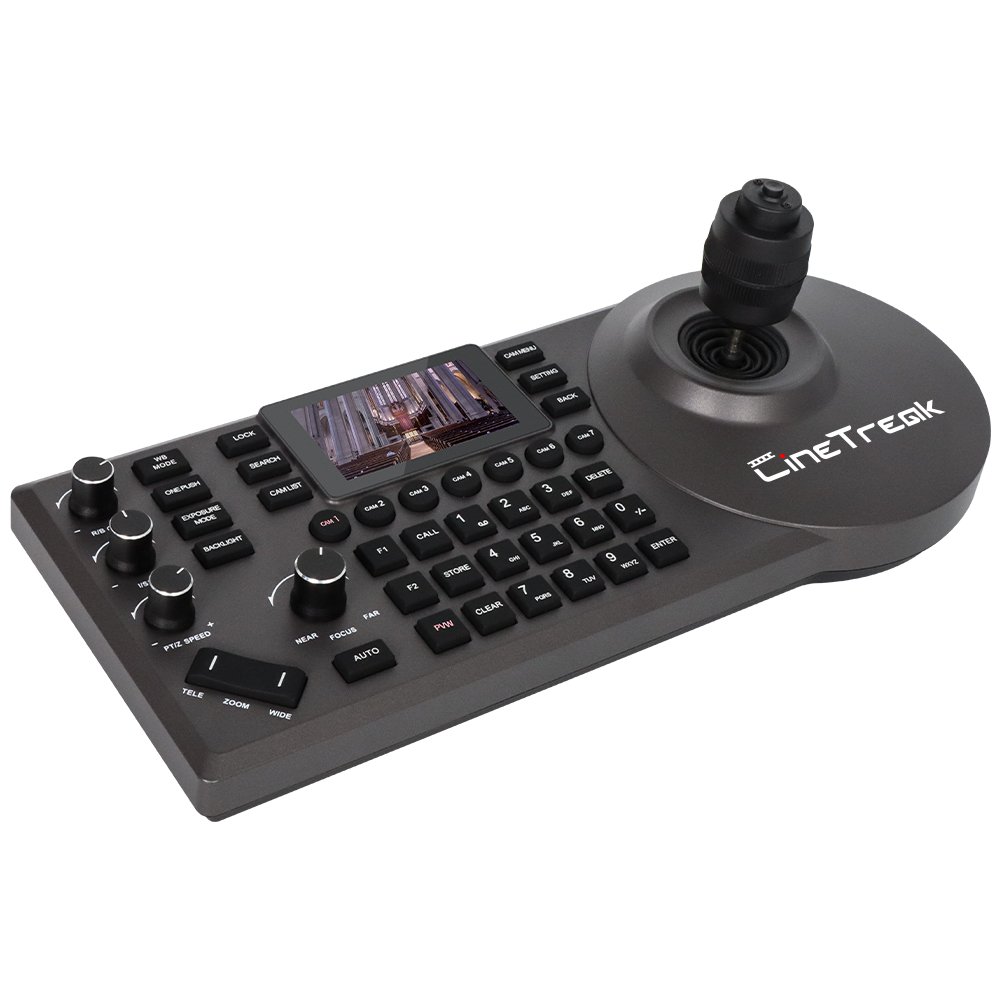

• Built-in 3″ LCD screen for live NDI | HX and RTSP preview
• UHD 4K30 HDMI output for external monitoring
• 4D joystick for smooth PTZ control
• 3D rotary knobs for focus, iris, shutter, gain, white balance adjustments
• Supports VISCA / Pelco-D / Pelco-P / ONVIF / NDI control protocols
• PoE+ powered for easy setup and network integration
• HDMI live preview plus multi-camera preset switching
• Programmable shortcut keys and backlit silicone buttons

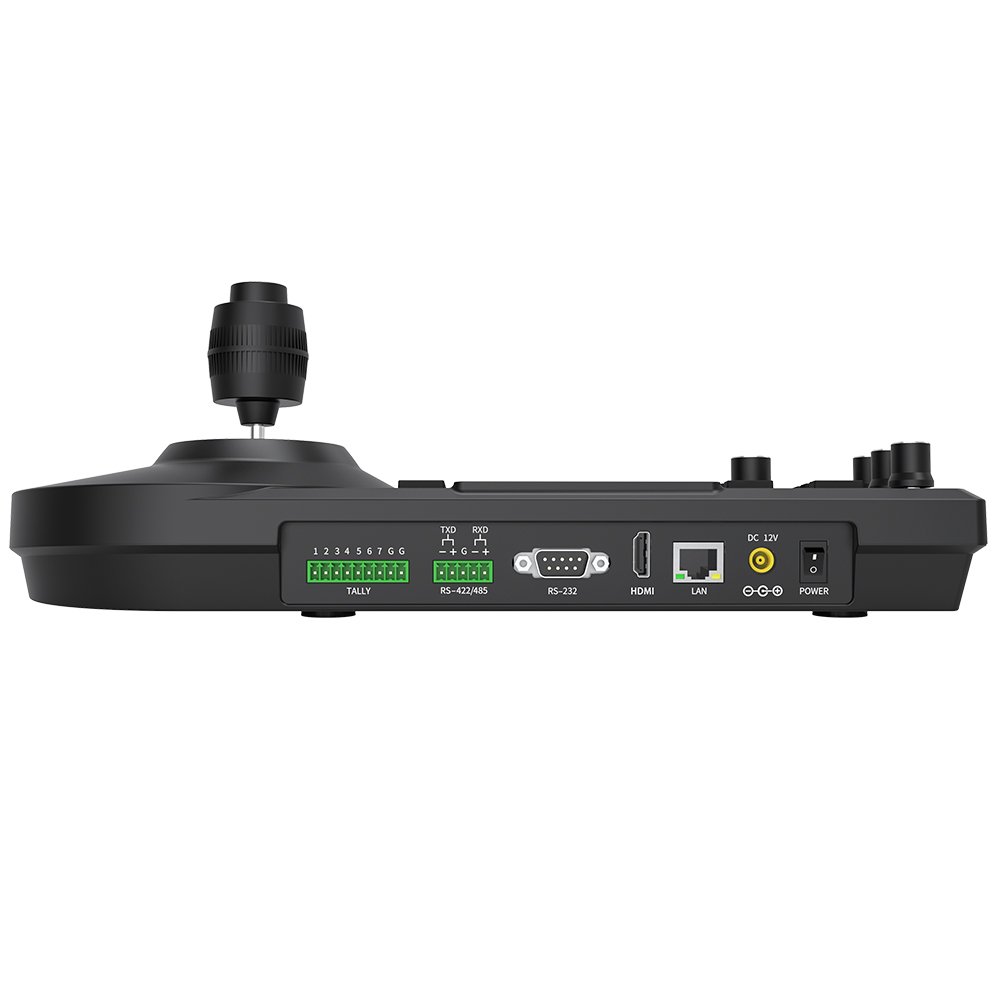

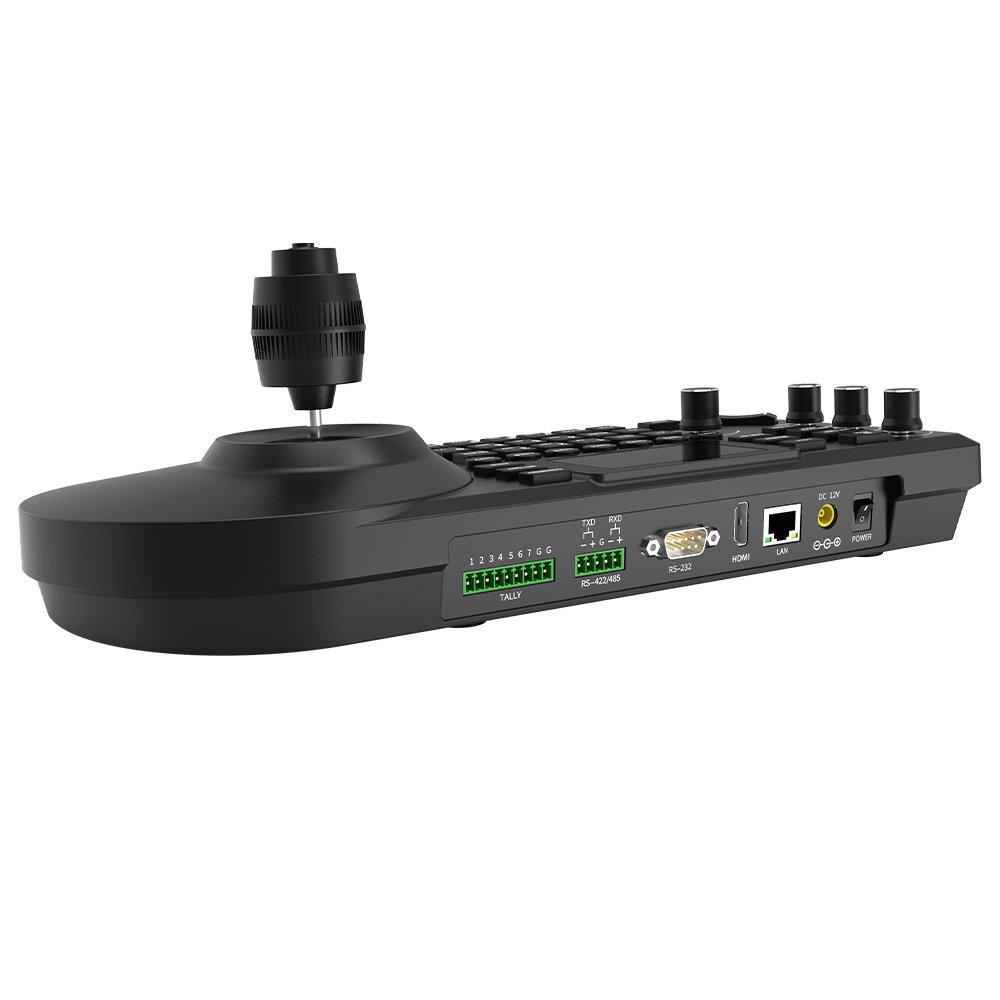

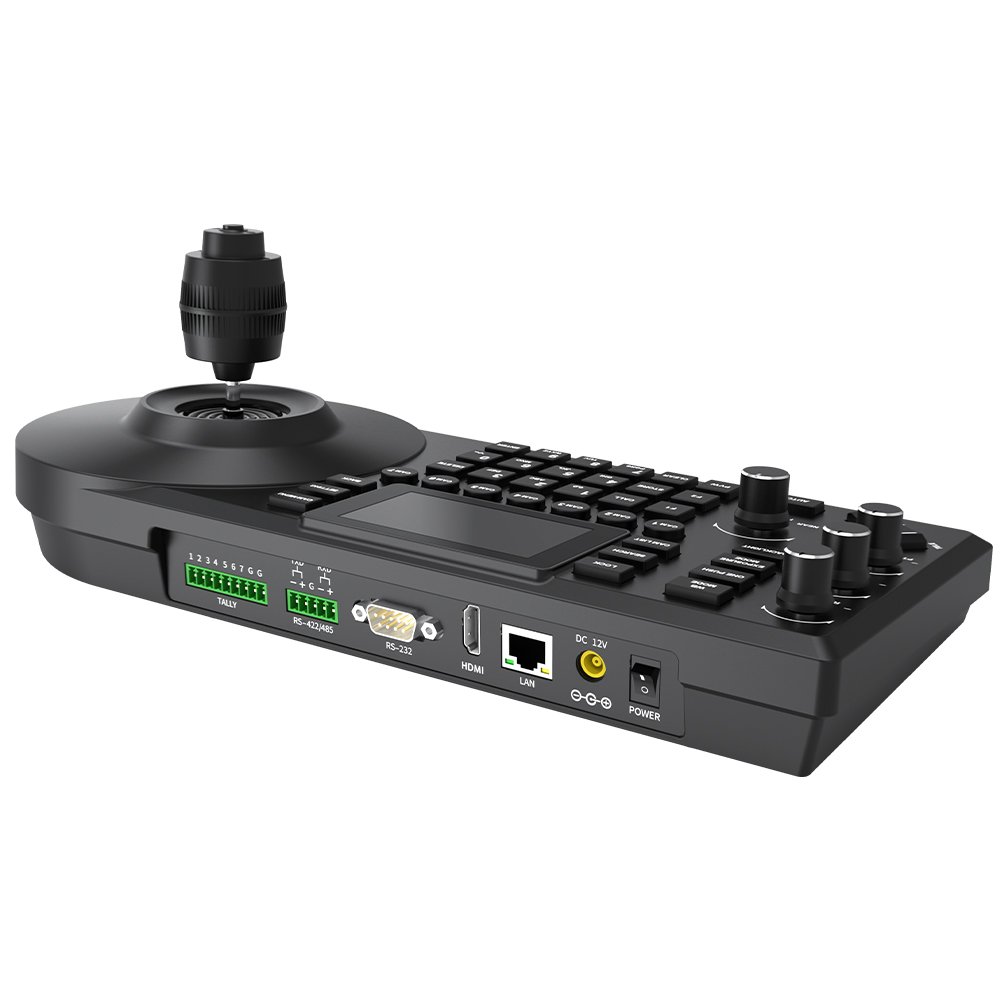

• RS-232, RS-422/485, and RJ45 connectivity for broad compatibility
• Can manage up to 1000 IP cameras on a network
Compare
The CineTreak CT-CR02 is a high-performance PTZ camera remote controller designed for professional broadcast studios, live production environments, conference halls, and educational facilities. Featuring NDI | HX preview, a high-resolution UHD HDMI output, and an intuitive control panel, it provides operators with total command over PTZ camera systems — all from a single ergonomic interface.
Powered via PoE+ for simplified installation and network integration, the CT-CR02 combines a precision 4D joystick, multi-axis rotary controls, and a built-in 3″ LCD preview screen that supports live NDI and RTSP streams. With broad protocol support including VISCA, Pelco, ONVIF, and NDI, it can manage large camera deployments and streamlines complex workflows with programmable shortcuts and rapid preset recall.
| Specification | Details |
|---|---|
| Product Type | Multifunctional PTZ Camera Remote Controller |
| Preview | Built-in 3″ LCD with NDI |
| Video Output | HDMI (up to 4K@30fps preview) |
| Control Protocols | VISCA, VISCA over IP, Pelco-D, Pelco-P, ONVIF, NDI |
| Network Interface | RJ45 Ethernet (PoE supported) |
| Serial Interfaces | RS-232, RS-422, RS-485 |
| Joystick | 4D Joystick for Pan / Tilt / Zoom / Focus |
| Camera Control | Pan, Tilt, Zoom, Focus, Iris, Shutter, Gain, White Balance |
| Preset Control | Up to 255 presets, quick recall buttons |
| Camera Support | Up to 1000 IP cameras (NDI / ONVIF / VISCA over IP) |
| Tally Support | Input & Output tally, up to 7 channels |
| Power Supply | DC 12V Adapter or PoE (802.3af) |
| Display Resolution | HDMI output up to 3840×2160@30Hz |
| Buttons | Backlit silicone keys, customizable F1 / F2 / PVW |
| Network Protocols | NDI, RTSP, TCP/IP |
| Web Control | Web-based backstage management interface |
| PTZ Speed Control | Adjustable pan/tilt/zoom speed via knobs |
| Preset Modes | 10 or 255 preset modes selectable |
| Audio | Not applicable (control-only device) |
| Operating Environment | Indoor professional broadcast control rooms |
| Applications | Broadcast, Live Streaming, Church, Studio, Conference, Education |
| Firmware | Upgradeable via network |
| Power Consumption | Low power, PoE supported |
| Mounting | Desktop console design |
| Color | Black professional finish |
