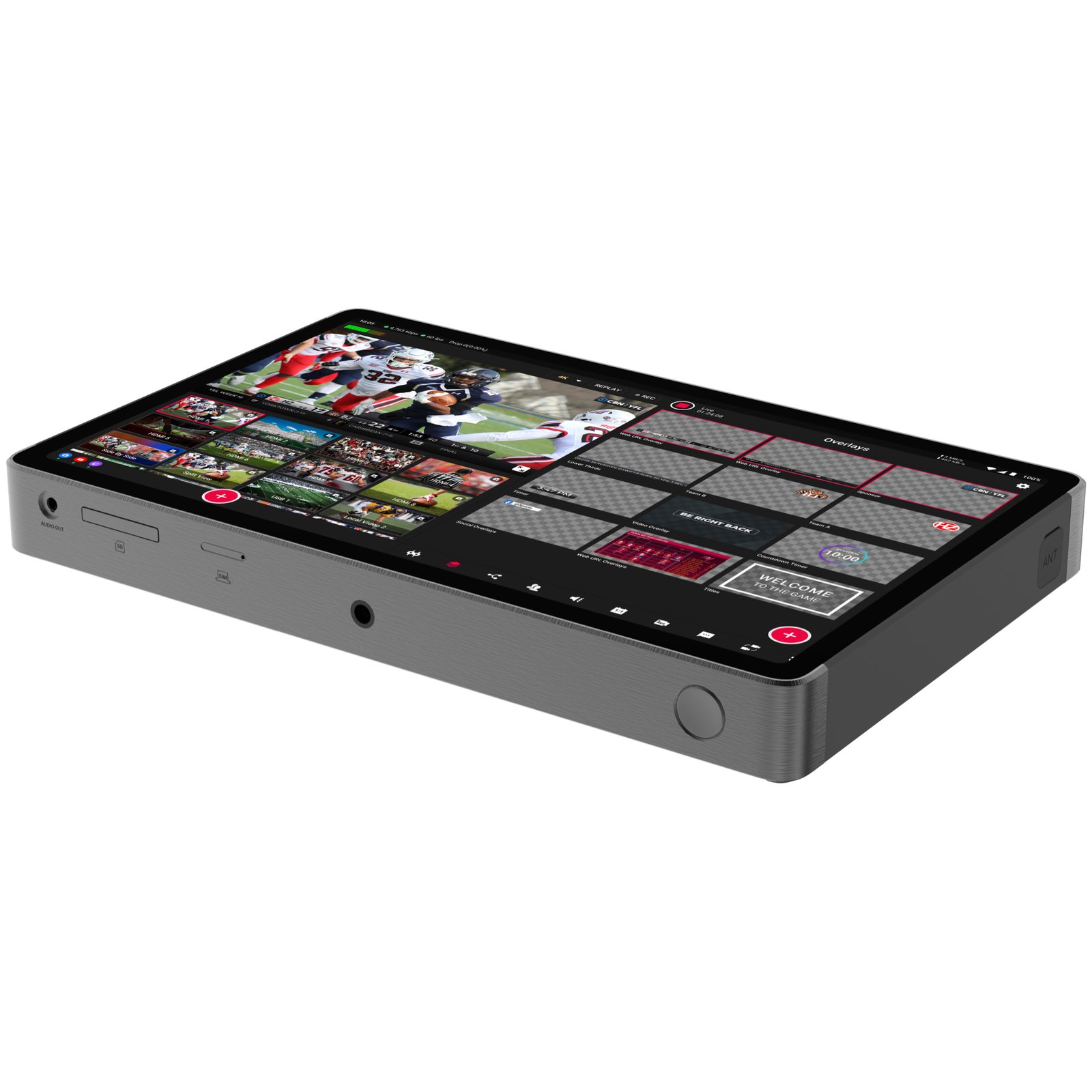

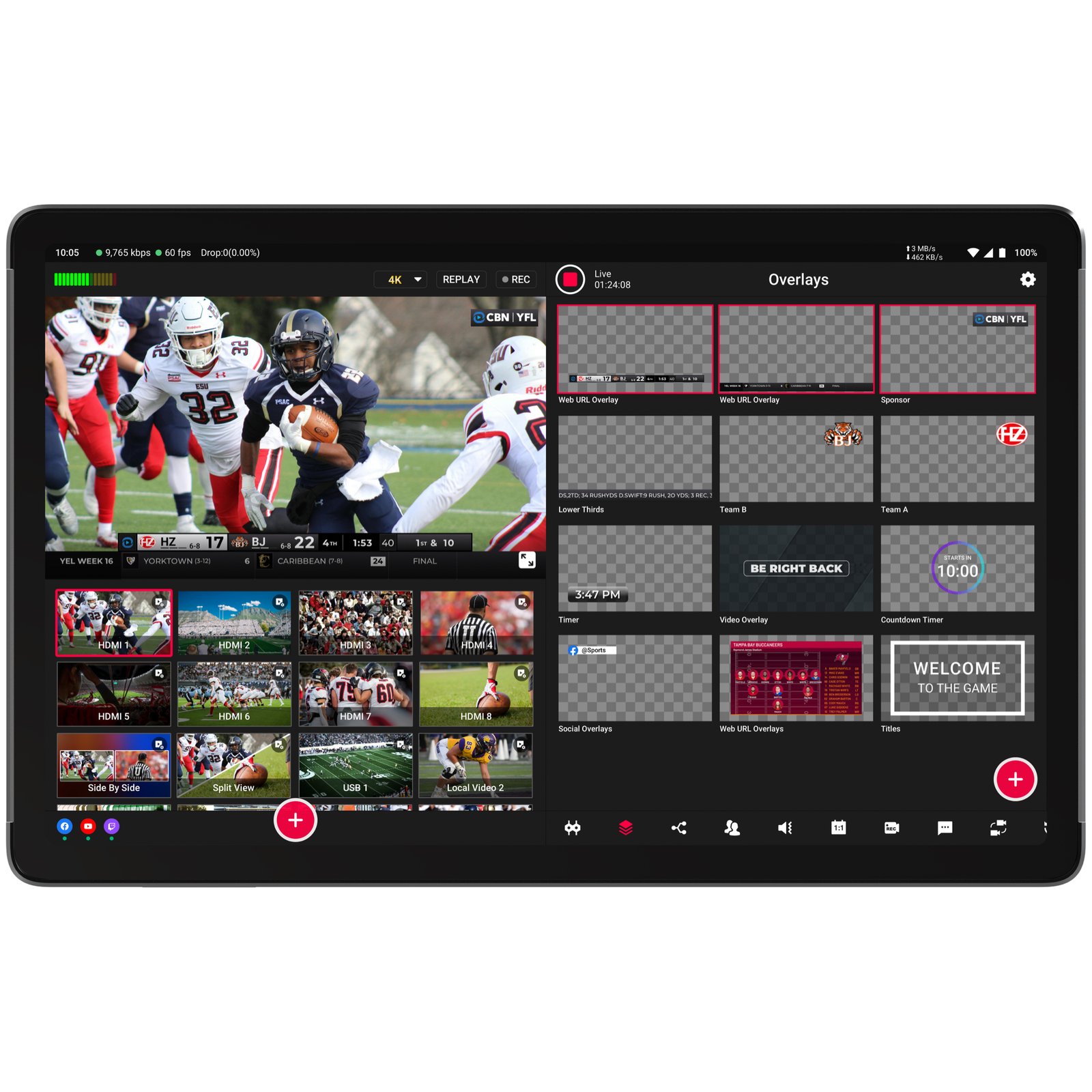

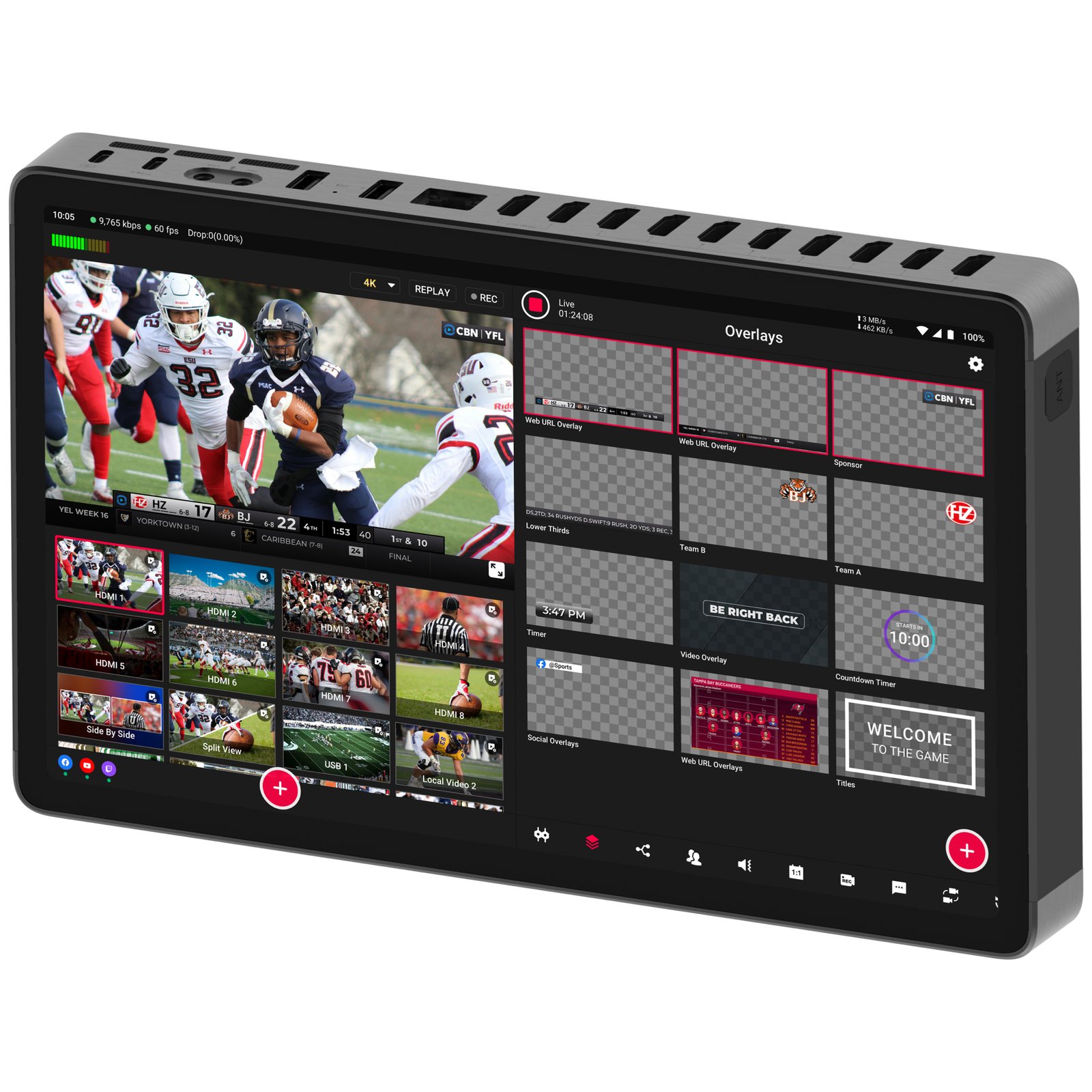

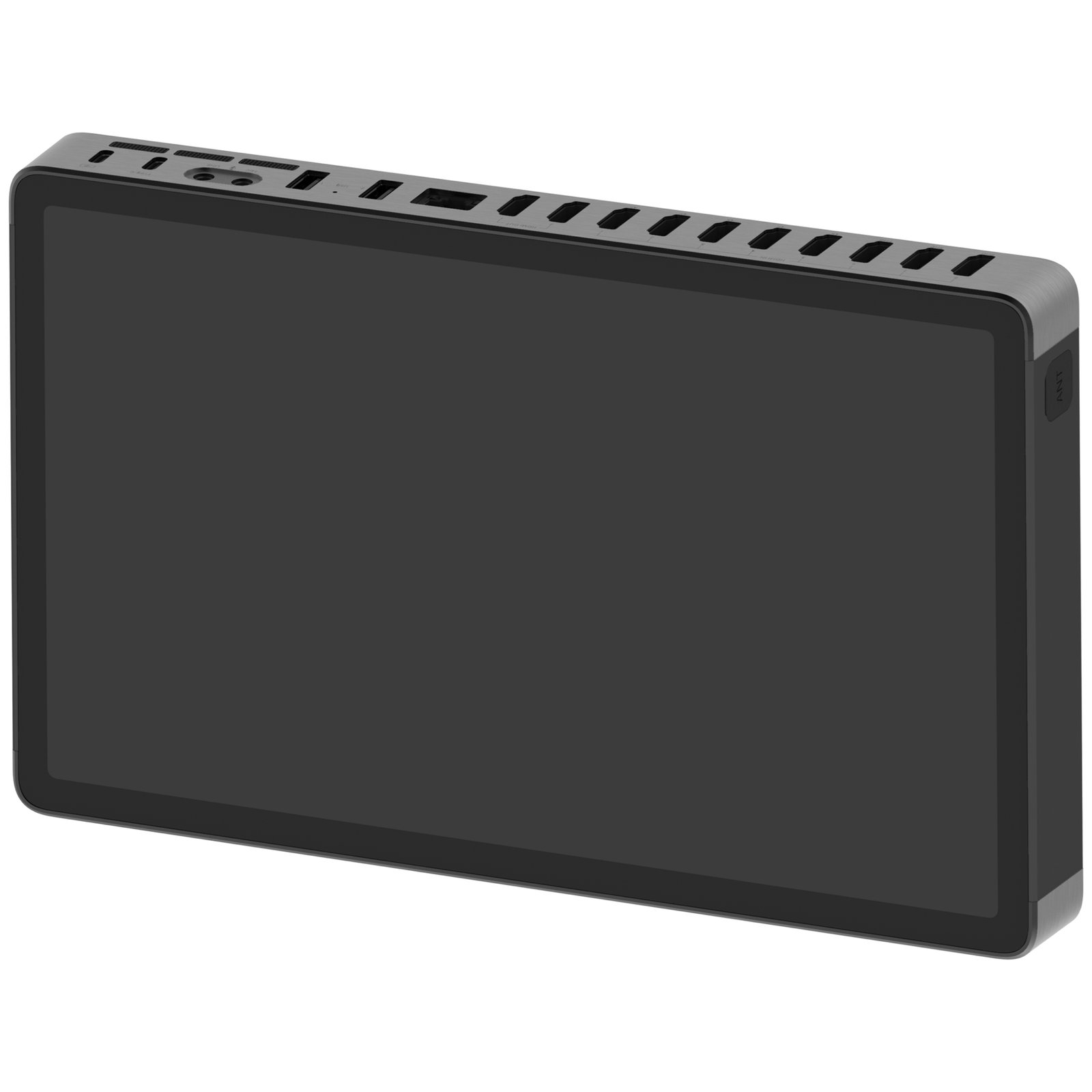

YoloLiv YoloBox Extreme: All-in-One Multi-Camera Live Streaming and Switching System
The YoloBox Extreme is here to revolutionize live streaming and video production. Designed for videographers, professionals and creators who demand the best-in-class performance, this next-generation device combines industry-leading upgrades with YoloLiv’s signature all-in-one convenience. From its 8 HDMI inputs, 2 assignable HDMI output to its 11.2-inch OLED touchscreen(800-1,000 nits of brightness), 4K streaming, 4K ISO recording, Qualcomm 8 Gen2 processor, up to 10-hour battery power, up to 8 NDI-HX inputs, YoloBox Extreme delivers unmatched power, flexibility, and ease of use for any production scenario.
Key Features
- Encoder, Monitor, Switcher & Recorder in One
- Live Switch Between 15+ Sources

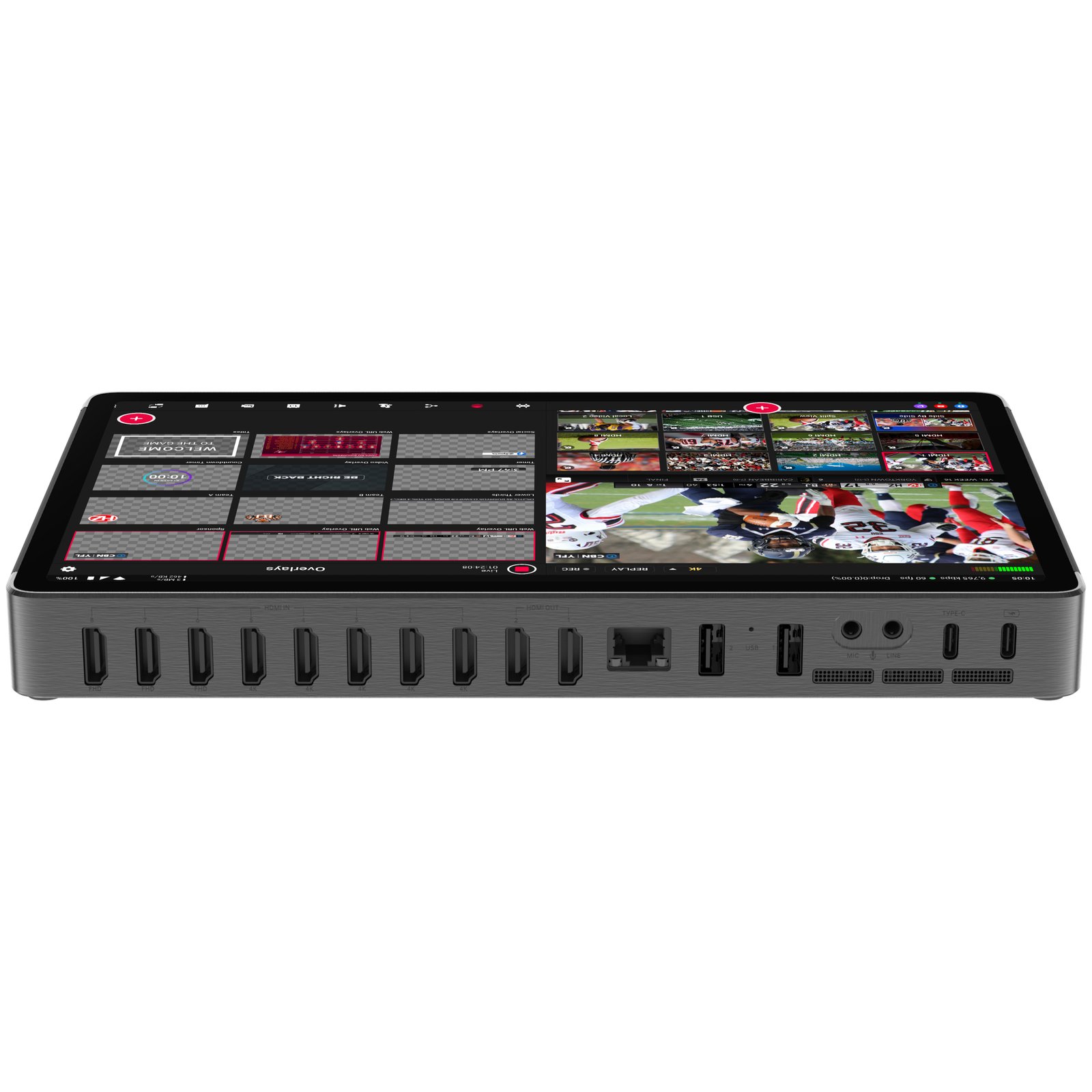

- 8 x HDMI,1 x USB-C & 2 x USB-A Inputs

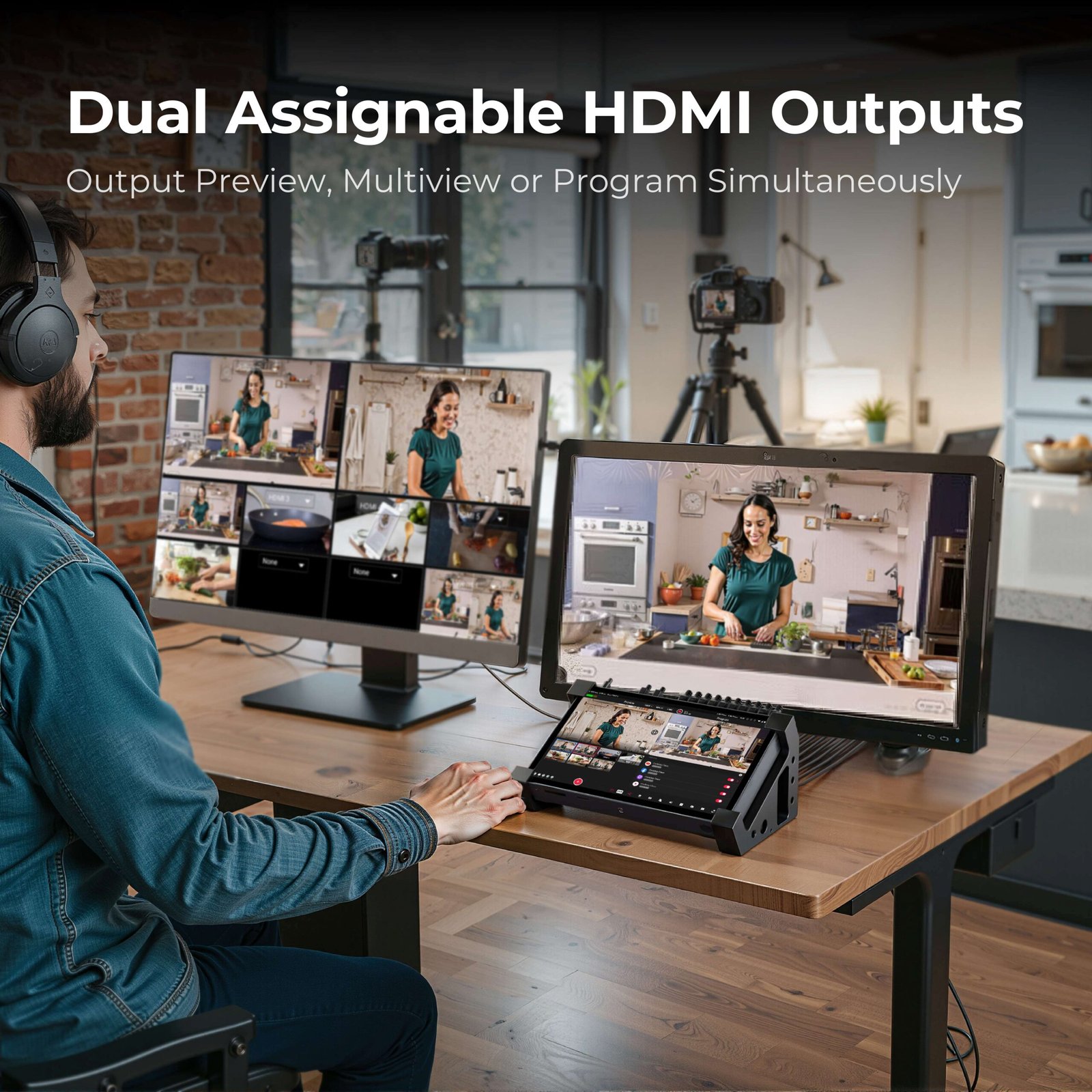

- 2 x HDMI Outputs, Mic In, Line In, Audio Out
- 1 x SD Card & 1xUSB Drive for Recording & Media Assets

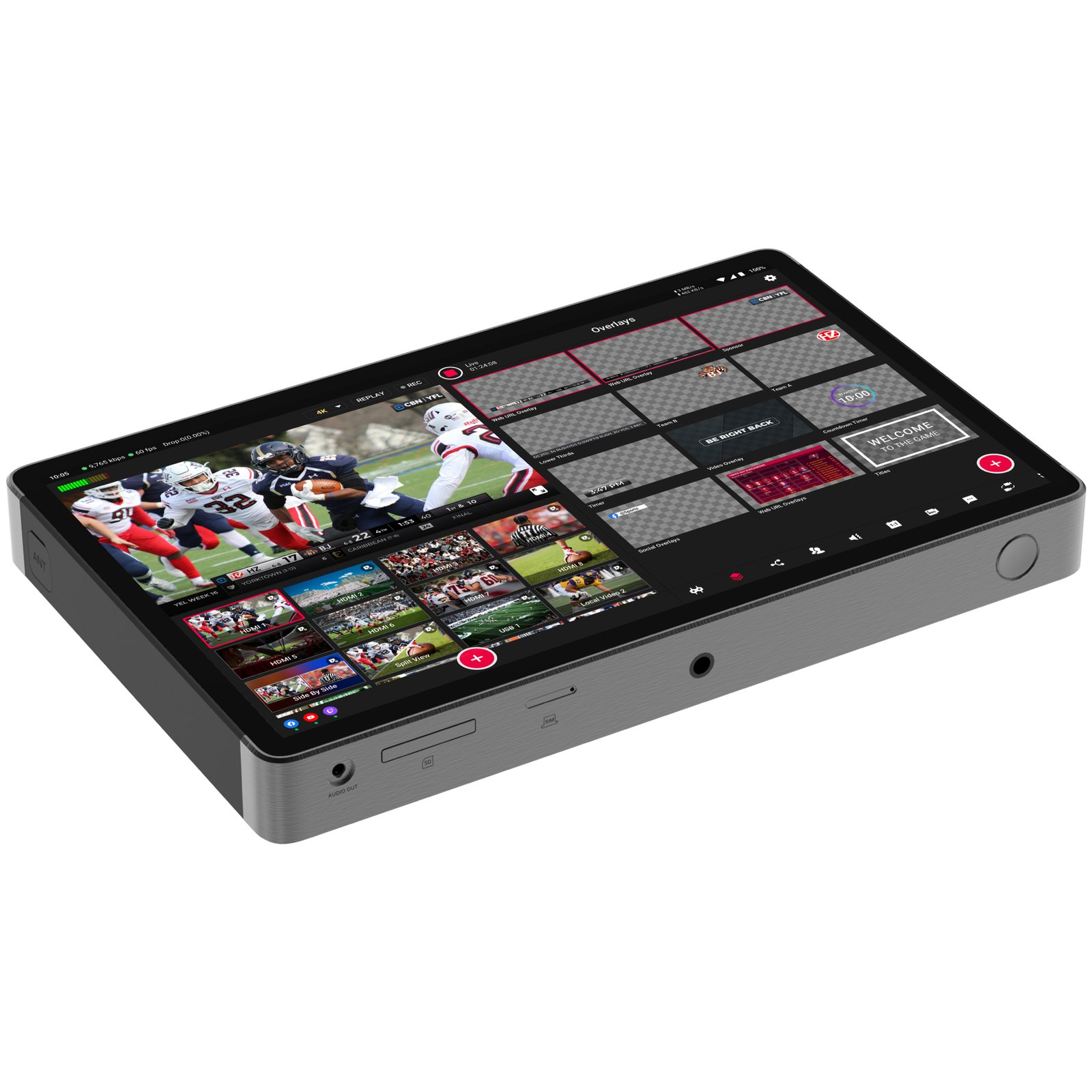

- 11.2″ Touchscreen Control OLED
- Stream & ISO Recording at 4K,
- Built-In Battery. Up to 10-Hour Battery Life
- Up to 8 wireless NDI inputs
- RTMP & SRT Support; SRT Listener & Caller Mode
- Supports H.264 & H.265
- Stream via Ethernet, Wi-Fi 6, 4G Network
- Simultaneous Cross-Platform Streaming
Compare
| Specification | Details |
|---|---|

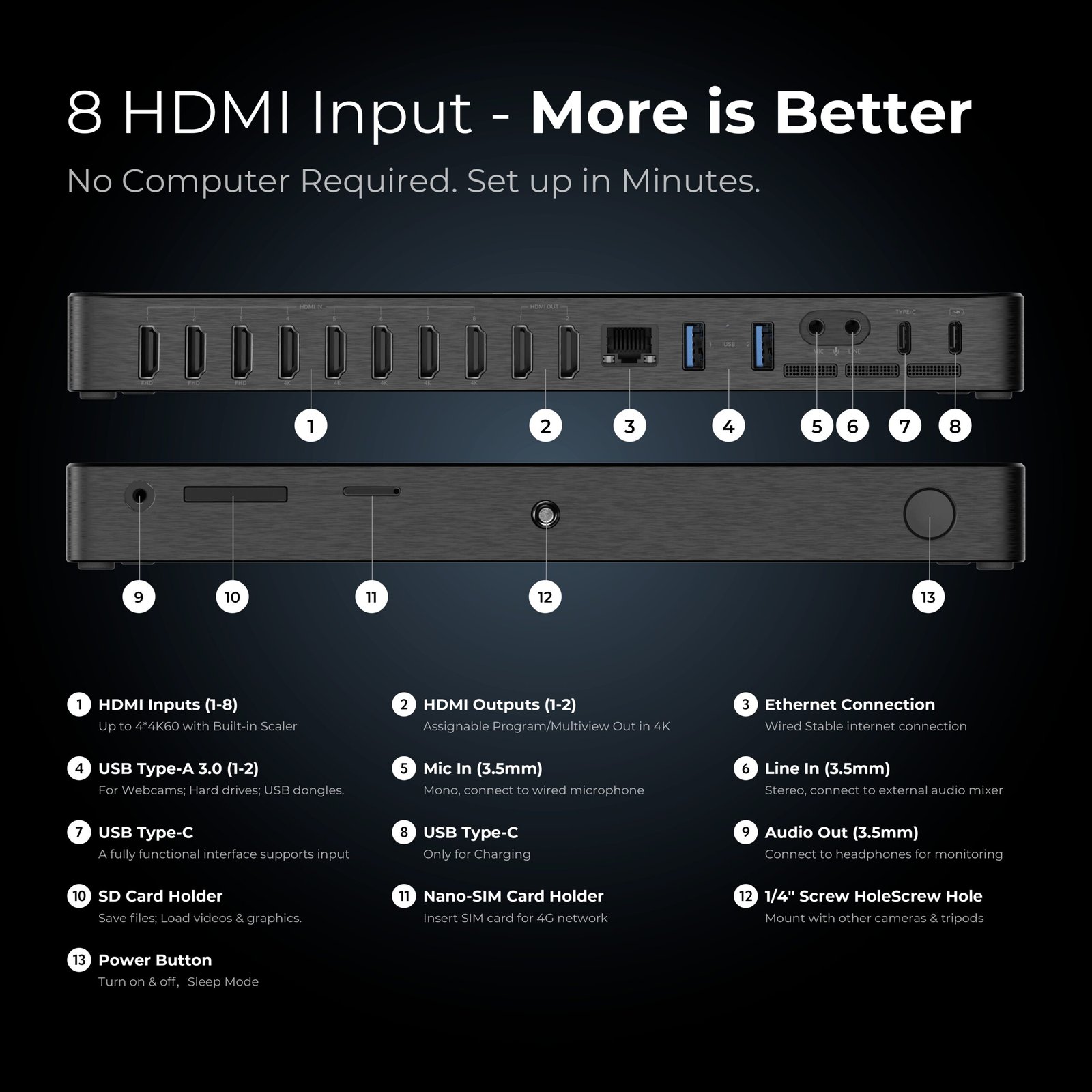

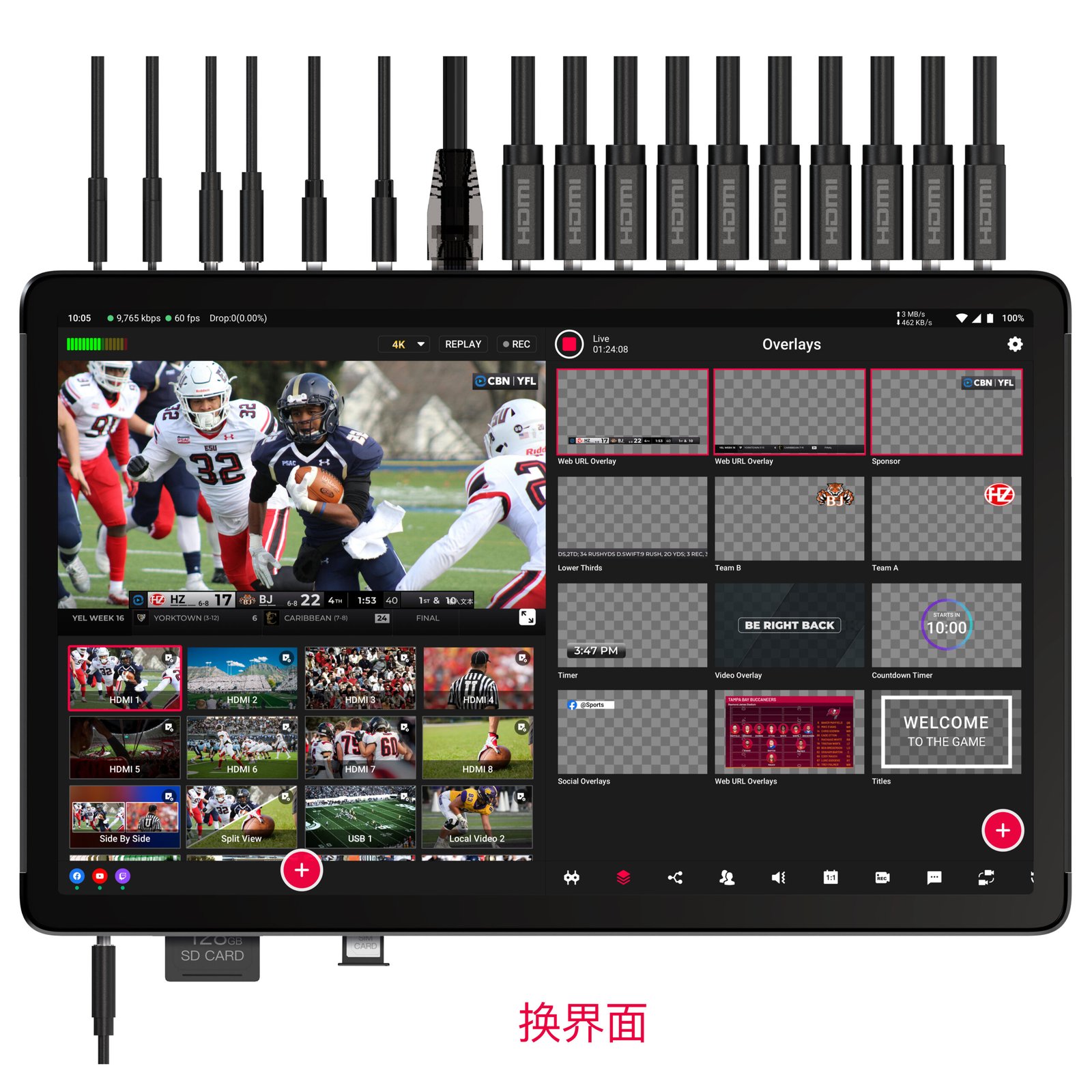

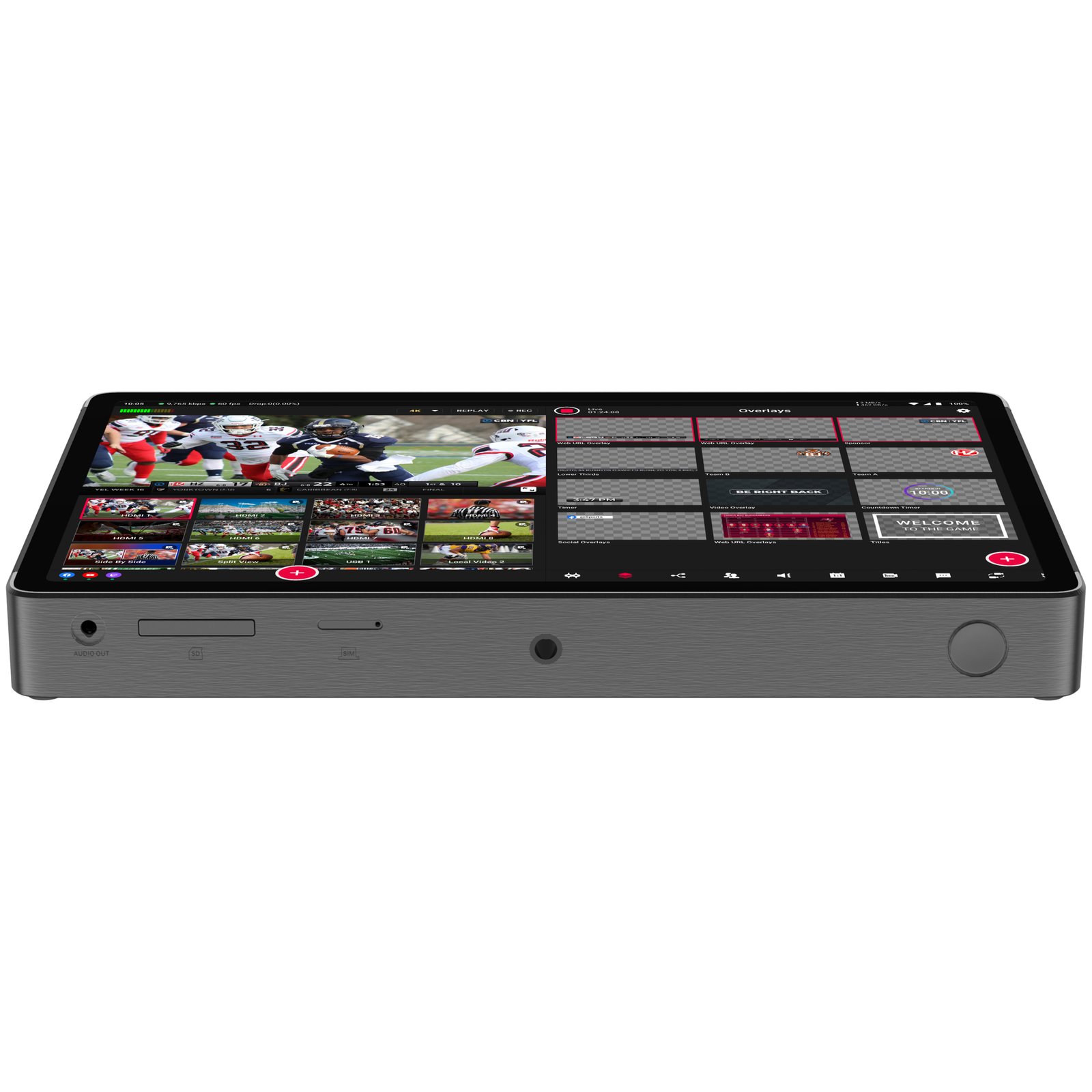

| Interfaces | HDMI IN ×8; USB-A 3.0 ×2; HDMI OUT ×2; Ethernet ×1; LINE IN (3.5mm); MIC IN (3.5mm); AUDIO OUT (3.5mm); Nano-SIM Card Holder; SD Card Holder; 1/4″ Screw Hole; USB Type-C (Only for charging); USB Type-C (Full-function port); USB Type-A ×2 |
| Input Power | +9V / 12V / 15V 3A |
| Power Consumption | < 45W |
| Power Supply | USB Type-C |
| USB Rated Output | USB-A: 5V/1A |
| Battery Capacity | 10000mAh |
| Dimensions | 264 × 167 × 29mm |
| Net Weight | ≈1500g |
| Monitor Screen Size | 11.2-inch 2K OLED; Resolution: 2560×153; Brightness: 450 nits; Contrast ratio: 1500:1; Frequency: 120Hz; Viewing Angle (full viewing angle); NTSC 108% |
| Local Video Inputs | HDMI, USB-A |
| Video Over Ethernet | RTMP / RTMPS / SRT / NDI / RTSP |
| Video Input Connectors | HDMI, USB-A, RJ-45, USB Type-C |
| Video Input Aspect Ratios | 16:9, 4:3, 1:1 |
| Video Input Deinterlacing | No |
| Live Broadcast Video Input Resolution | 480p / 720p / 1080p (up to 60fps) / 4Kp30 |
| Video Encoded Format | H.264, H.265 |
| Video Processing Bitrate Control | CQ, VBR, CBR |
| Hardware-accelerated Video Encoding | Optional |
| Video Output Signal Types | FLV-RTMP, HDMI, UVC |
| Video Output Connectors | HDMI OUT, USB-C |
| Video Output Streaming Protocols | RTMP, RTMPS, MJPEG, SRT |
| Live Broadcast Video Output Resolution | 480p / 720p / 1080p (up to 60fps) / 4Kp30 |
| Analog Audio Input Connectors | Line In, Mic In; 3.5mm |
| Digital Audio Outputs | USB; HDMI; RTMP (From internet); Local video (From SD card) |
| Digital Audio Input Connectors | USB-A, HDMI, USB-C |
| Audio Input Mute | Yes |
| Audio Input Format | 32KHz / 44.1KHz / 48KHz; 16bit |
| Audio Encoded Format | AAC; 44.1K / 48KHz; 2Ch; 16bit |
| Analog Audio Output | 3.5mm Headphone Jack |
| Digital Audio Outputs (Embedded) | HDMI Audio (Embedded); USB Audio (Embedded) |
| Record Formats | MP4 |
| Wi-Fi | 2.4G / 5G (Support WiFi6) |
| USB Communication Standard | USB 2.0 and USB 3.0 |
| Ethernet Data Rate | 10 / 100 / 1000m; Half/Full Duplex with Autodetect |
| SIM Card Size | Nano-SIM Card |
| 4G Network | • Variant for North America (US/Canada/Mexico): B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B66/B71• Mexico B4 for Non-US/Canada• EU Variant for EMEA/India/Korea/Taiwan/South Asia/Latin America/Australia/New Zealand• Thailand B1/B3• Certification aligns with mainstream open 4G band requirements; refer to approval report for details |
| SD Card Format | FAT32 (Under 128G); NTFS; EX-FAT |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 15%–85%; No Condensation |
| Country of Origin | Made in China |
