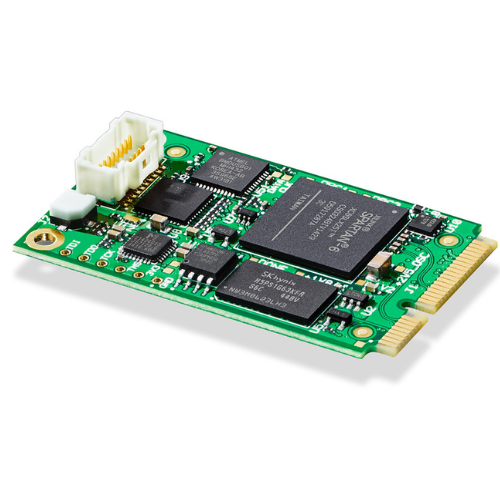

DeckLink Micro Recorder


The DeckLink Micro Recorder is a low-latency miniature video capture card for all SD and HD formats up to 1080p30. Compatible with computers that have a 1-lane Gen 1 Mini PCIe slot, SDI or HDMI video inputs can be added using the built in Hirose® and Molex® connectors.

11,196 +GST

Compare

Connections

PCIx1 Gen 1

PCI Express® Mini Card Electromechanical Specification. Note, however, that the HDMI connector height (8.0mm) exceeds the 3.0mm height specification.

Standards

SD Format Support

525i/59.94 NTSC, 625i/50 PAL.

HD Format Support

720p50, 720p59.94, 720p60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080i50, 1080i59.94, 1080i60,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.

Video Sampling

4:2:2.

Color Precision

8, 10-bit YUV 4:2:2.

Compliance

SMPTE 259M, 292M, 296M, and HDMI.

Available Accessories

DeckLink Micro Recorder

Part Numbers

DeckLink Micro Recorder, order code: BDLKMICROREC

HDMI Cable, order code: CABLE-BDLKMIR/HDMI

SDI Cable, order code: CABLE-BDLKMIR/SDI

Physical Specifications

DeckLink Micro Recorder

Operating Systems

Mac iconMac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows IconWindows 10, 64-bit.
Windows 11.
Linux iconLinux

Power Requirements

Power Consumption

3 Watts max

Environmental Specifications

Operating Temperature

-25°C to 55°C (-13°F to 131°F)

Storage Temperature

-40°C to 75°C (-40°F to 167°F)

Relative Humidity

0% to 90% non-condensing

What’s Included

DeckLink Micro Recorder

Warranty

3 Year Limited Manufacturer’s Warranty.
