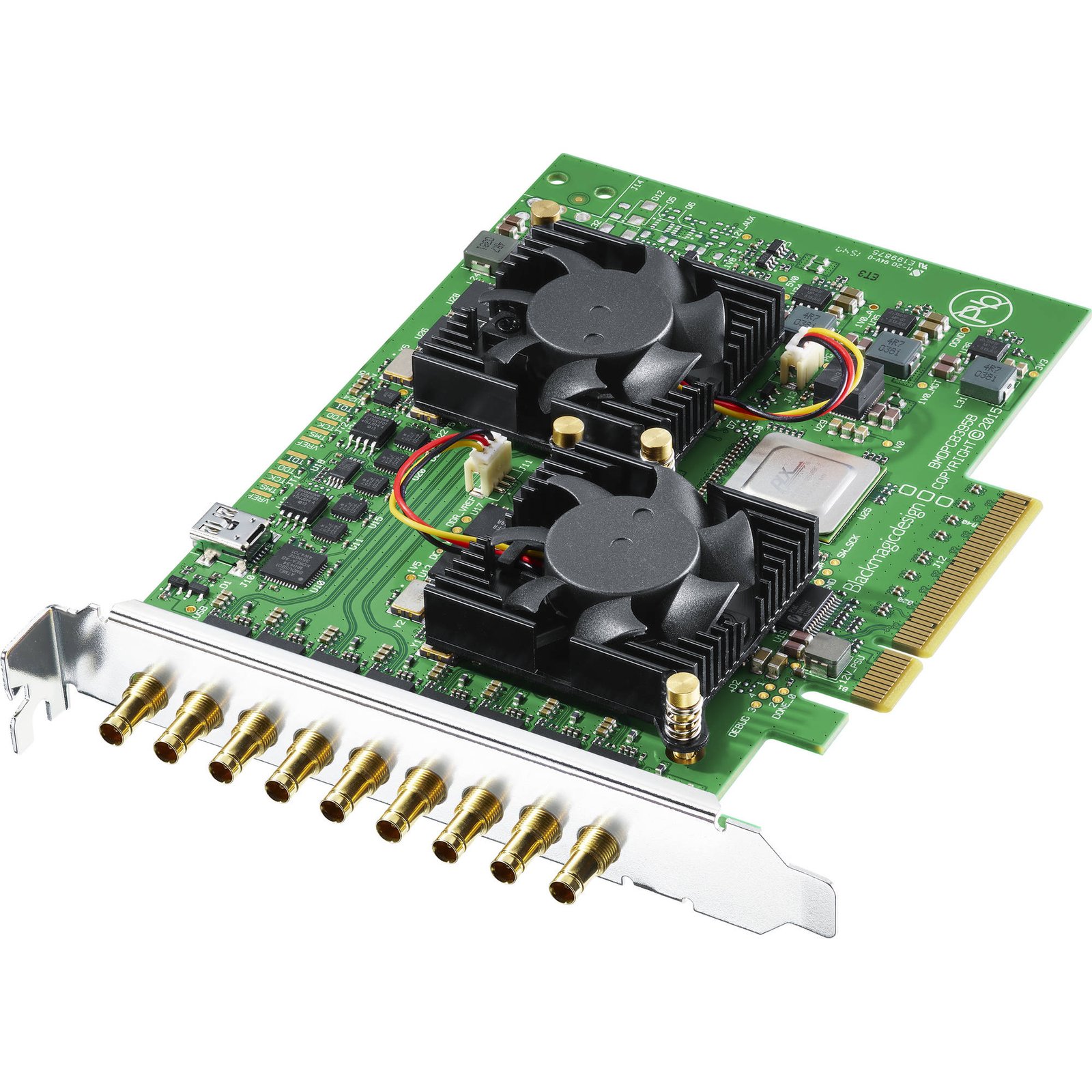

DeckLink Quad 2
The Blackmagic Design DeckLink Quad 2 is a high-performance PCIe card built for multi-channel video capture and playback in professional broadcast and live production environments. With eight fully independent 3G-SDI connections, it delivers exceptional flexibility for handling multiple video streams simultaneously.
Key Features :
- 8 Independent Channels: 8 bidirectional 3G-SDI ports (input/output configurable)
- Flexible Workflows: Each port supports different video formats up to 1080p60
- High-Quality Video: Supports 10-bit/12-bit uncompressed + ProRes & DNxHD
- Embedded Audio: Up to 16 channels per SDI input/output
- Server Ready: Ideal for 1U systems with single-slot design
- Wide Compatibility: Works on Mac, Windows, and Linux
Ideal for high-density capture, playout servers, and multi-channel broadcast workflows.
₹100,909 ₹114,436
DeckLink Quad 2 features 8 independent SDI capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.
