Micro Converter SDI to HDMI 12G


Key Features
  • 1 x 12G-SDI Input, 1 x HDMI Output
  • 1 x 12G-SDI Loop Output
  • Selectable SD/HD Level A/B SDI Ports
  • Supports up to DCI 4K60 Resolution I/O
  • Automatic Input Signal Detection
  • Compact, Rugged Design
  • Embedded Audio, USB Type-C Power
  • LED Video & Power Signal Indicators

12,131 +GST

Compare

Blackmagic Design Micro Converter Overview

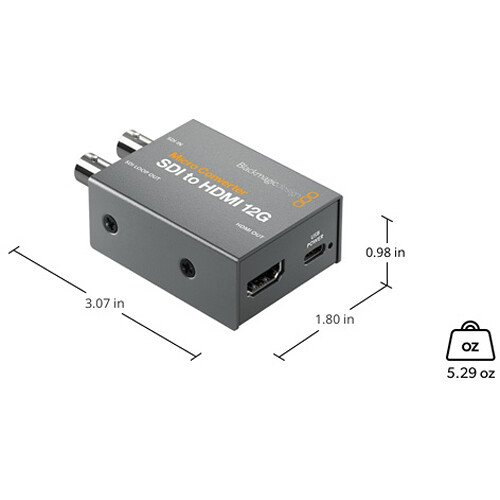

Super compact and rugged, the Micro Converter SDI to HDMI 12G from Blackmagic Design enables you to link SDI cameras or computers to pro-style HDMI monitors, projectors, or displays, and it features a 33-point LUT for color calibration. This compact converter has one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. It auto-detects and matches your SDI input to the HDMI output and is compatible with input/output resolutions up to DCI/UHD 4K60.

The pocket-sized Micro Converter SDI to HDMI 12G features timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the SDI to HDMI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. The converter is powered using a separately available USB Type-C cable and power supply.

Features
I/O
  • One 12G-SDI input
  • One HDMI output
  • One 12G-SDI loop output
Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer
SDI Re-Clocking
  • Built-in re-clocking on HDMI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60
Embedded Audio
  • Supports embedded SDI input and embedded HDMI output
LED Indicators
  • LED indicators for video and power signals
Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Powered using a separately available power supply
Operating System Support
  • macOS 10.15 Catalina
  • macOS 11.1 Big Sur or later
  • Windows 10, 64-bit
